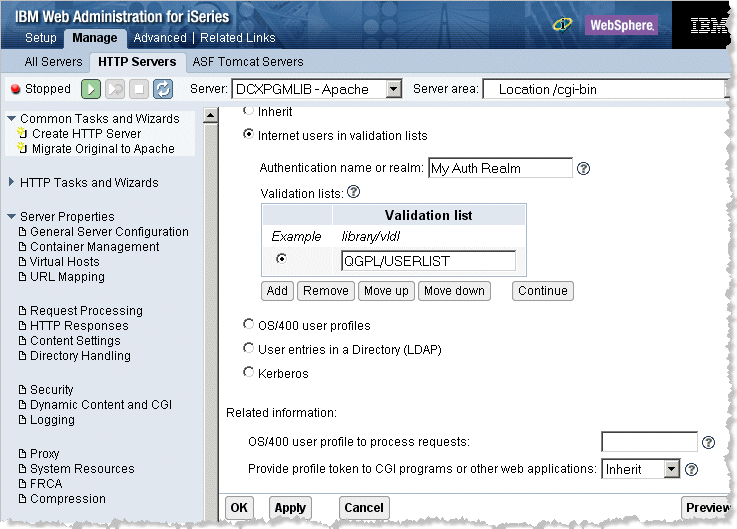

1. From within your server instance of the IBM Web Administration for IBM i, expand the Server Properties menu and select Security to display the Security page.
2. Use the Server area dropdown list set Location to: /cgi-bin
3. Select the Authentication tab. Choose the Internet users in validation lists.
4. Enter an authentication name of your choice.
5. Press Add to specify the location of your validation list on the IBM i.
6. Press Apply.
Sample IBM HTTP Server (powered by Apache)Configuration
Following is a sample IBM HTTP Server Instance configured for standard authentication running under V5R3 or later.
All requests to the Web Server using cgi-bin will require authentication.
# LANSA Web Apache HTTP Configuration File
Alias /images /lansa_dcxpgmlib/webserver/images
ScriptAliasMatch ^/cgi-bin/jsmdirect(.*) /QSYS.LIB/JSMLIB.LIB/JSMDIRECT.PGM$1
ScriptAliasMatch ^/cgi-bin/lansaweb(.*) /QSYS.LIB/DCXCOMLIB.LIB/lansaWEB.PGM$1
ScriptAliasMatch ^/cgi-bin/lansaxml(.*) /QSYS.LIB/DCXCOMLIB.LIB/lansaXML.PGM$1
Listen *:80
DocumentRoot /lansa_dcxpgmlib/WebServer/www/htdocs
# DirectoryIndex /index.html
ServerRoot /www/dcxpgmlib
Options -ExecCGI -FollowSymLinks -SymLinksIfOwnerMatch -Includes -IncludesNoExec -Indexes -MultiViews
DefaultFsCCSID 37
DefaultNetCCSID 819
LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"" combined
LogFormat "%{Cookie}n \"%r\" %t" cookie
LogFormat "%{User-agent}i" agent
LogFormat "%{Referer}i -> %U" referer
LogFormat "%h %l %u %t \"%r\" %>s %b" common
CustomLog logs/access_log combined
SetEnvIf "User-Agent" "Mozilla/2" nokeepalive
SetEnvIf "User-Agent" "JDK/1\.0" force-response-1.0
SetEnvIf "User-Agent" "Java/1\.0" force-response-1.0
SetEnvIf "User-Agent" "RealPlayer 4\.0" force-response-1.0
SetEnvIf "User-Agent" "MSIE 4\.0b2;" nokeepalive
SetEnvIf "User-Agent" "MSIE 4\.0b2;" force-response-1.0
SetEnvIf "User-Agent" ".*MSIE.*" nokeepalive ssl-unclean-shutdown downgrade-1.0 force-response-1.0
ServerUserID DCXPGMLIB
<Directory />
Order Deny,Allow
Deny From all
</Directory>
<Directory /QSYS.LIB/JSMLIB.LIB>
Order Allow,Deny
Allow From all
</Directory>
<Directory /QSYS.LIB/DCXCOMLIB.LIB>
Order Allow,Deny
Allow From all
</Directory>
<Directory /lansaIMG>
Order Allow,Deny
Allow From all
</Directory>
<Directory /lansa_ii3pgmlib/WebServer/www/htdocs>
Order Allow,Deny
Allow From all
</Directory>
<Location /cgi-bin>
PasswdFile QGPL/USERLIST
AuthType Basic
AuthName "My Auth Realm"
Require valid-user
</Location>
