Field Name
NATION (Alpha 3)
Description
How to visualize a field as an Image set in a grid.
Uses
This Visualization type is useful to provide a more visual means of selecting values from a list.
Details
Through the Field Component source add a Picklist visualization ( PRIM_EVPL ) and a Picklist. Note that these are separate classes in the Field source. Add picklist items to represent nationalities and attach an image to each picklist item.Change the Appearance property of the PRIM_EVPL to Image. Save the field and use the VisualPicklist class on a form.
1. Through the Field Component source add a Picklist visualization ( PRIM_EVPL ) and a Picklist. Note that these are separate classes in the Field source. Add picklist items to represent nationalities and attach an image to each picklist item. Save the field.
2. Create a grid component. From the fields tab add the NATION field to the grid as a column. Set the following properties on the column.

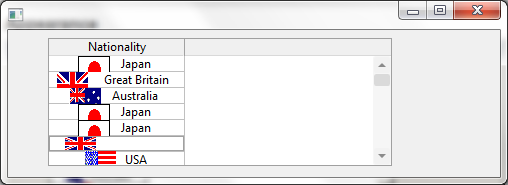

3. Load the grid and the column is displayed and edited as an image set.
Field Source
Begin_Com Role(*EXTENDS #PRIM_OBJT)
Begin_Com Role(*picklist) Name(#Picklist)
Define_Com Class(#PRIM_PKIT) Name(#Item_1) Caption('USA') Default(True) Image(#VL_FLGUSA) Parent(#Picklist) Value('USA')
Define_Com Class(#PRIM_PKIT) Name(#Item_2) Caption('Japan') Image(#VL_FLGJPN) Parent(#Picklist) Value('JPN')
Define_Com Class(#PRIM_PKIT) Name(#Item) Caption('Great Britain') Image(#VL_FLGGB) Parent(#Picklist) Value('GBP')
Define_Com Class(#PRIM_PKIT) Name(#Item_3) Caption('Australia') Image(#VL_FLGAUS) Parent(#Picklist) Value('AUS')
End_Com
Begin_Com Role(*Visual #PRIM_EVPL) Name(#VisualPicklist) Appearance(Image) Defaultvisual(True) Height(95) Width(209)
End_Com
End_Com
Form Source
Function Options(*DIRECT)
Begin_Com Role(*EXTENDS #PRIM_FORM) Clientheight(147) Clientwidth(492) Height(174) Left(369) Top(152)
Define_Com Class(#PRIM_GRID) Name(#GRID) Captionnoblanklines(True) Columnbuttonheight(17) Componentversion(1) Displayposition(1) Height(128) Left(40) Parent(#COM_OWNER) Showbuttonselection(True) Showselection(True) Showselectionhilight(False) Showsortarrow(True) Tabposition(1) Top(8) Width(344)
Define_Com Class(#PRIM_GDCL) Name(#GDCL) Columnalign(Center) Displayappearance(ImageAndText) Displayposition(1) Editappearance(ImageAndText) Parent(#GRID) Readonly(False) Source(#NATION) Usepicklist(True) Width(30)
Evtroutine Handling(#COM_OWNER.CreateInstance) Options(*NOCLEARMESSAGES *NOCLEARERRORS)
Select Fields(#SECTION) From_File(PSLMST)
Add_Entry To_List(#GRID)
Endselect
Endroutine
End_Com
Appearance
