Field Name
SECTION(Alpha 2)
Description
How to visualize a field as an ReusablePart on a form.
There are times when you may wish to provide a field as a list of options but the built in PicklistList is not flexible enough for your case. One example of this is where you may want a section field to display a list of sections from a database.
Reusable Part Source (SECTIONR)
Function Options(*DIRECT)
Begin_Com Role(*EXTENDS #PRIM_PANL) Defaultpty(Section) Displayposition(1) Height(68) Layoutmanager(#ATLM_1) Left(0) Tabposition(1) Top(0) Width(224)
* Reusable consists of a combo box with a client layout item attachment
Define_Com Class(#PRIM_CMBX) Name(#SECT_CBX) Displayposition(1) Fixedheight(False) Height(68) Left(0) Parent(#COM_OWNER) Tabposition(1) Top(0) Width(224)
Define_Com Class(#PRIM_CBCL) Name(#CBCL_1) Displayposition(1) Parent(#SECT_CBX) Source(#SECTION) Width(20)
Define_Com Class(#PRIM_ATLM) Name(#ATLM_1)
Define_Com Class(#PRIM_ATLI) Name(#ATLI_1) Attachment(Center) Manage(#SECT_CBX) Parent(#ATLM_1)
Define_Pty Name(Section) Get(Get_Section) Set(Set_Section)
Evtroutine Handling(#COM_OWNER.Initialize) Options(*NOCLEARMESSAGES *NOCLEARERRORS)
* Select all entries from PSLMST and add to our combo box
Select Fields(#SECTION) From_File(PSLMST)
Add_Entry To_List(#SECT_CBX)
Endselect
Endroutine
Ptyroutine Name(Get_Section)
Define_Map For(*output) Class(#SECTION) Name(#o_section)
* Default property Get.
*
* Get_Entry on the combo box focus item and set the return value
If_Ref Com(#SECT_CBX.focusitem) Is_Not(*NULL)
Change Field(#STD_NUM) To('#SECT_CBX.FOCUSITEM.ENTRY')
Get_Entry Number(#STD_NUM)
Endif
Set Com(#o_section) Value(#SECTION)
Endroutine
Ptyroutine Name(Set_Section)
Define_Map For(*input) Class(#SECTION) Name(#i_section)
* Default property Set.
*
* Select_List on Combo and set focus to mathing item from input
Selectlist Named(#SECT_CBX)
If Cond('#SECTION *ne #I_SECTION')
Continue
Endif
Set Com(#SECT_CBX.currentitem) Focus(true) Selected(true)
Endselect
Endroutine
End_Com
Field Source
Begin_Com Role(*EXTENDS #PRIM_OBJT)
Begin_Com Role(*Visual #PRIM_EVEF) Name(#VisualEdit) Defaultvisual(True) Height(19) Usepicklist(False) Width(185)
End_Com
Begin_Com Role(*Visual_Part #SECTIONR) Name(#Combo) Height(19) Width(185)
End_Com
End_Com
Form Source
Function Options(*DIRECT)
Begin_Com Role(*EXTENDS #PRIM_FORM) Clientheight(147) Clientwidth(492) Height(174) Left(369) Top(152)
Define_Com Class(#SECTION.COMBO) Name(#SECT_CBX) Height(49) Left(248) Parent(#COM_OWNER) Top(8) Width(234)
Define_Com Class(#PRIM_LTBX) Name(#LIST) Componentversion(1) Displayposition(2) Height(132) Left(6) Parent(#COM_OWNER) Showselection(True) Tabposition(2) Top(8) Width(131)
Define_Com Class(#PRIM_PHBN) Name(#PHBN_SET) Caption('Set Field Value') Displayposition(3) Left(144) Parent(#COM_OWNER) Tabposition(3) Top(24) Width(89)
Define_Com Class(#PRIM_PHBN) Name(#PHBN_GET) Caption('Get Field Value') Displayposition(4) Left(144) Parent(#COM_OWNER) Tabposition(4) Top(80) Width(89)
Define_Com Class(#PRIM_LBCL) Name(#LBCL_1) Displayposition(1) Parent(#LIST) Source(#SECTION) Width(20)
Evtroutine Handling(#COM_OWNER.CreateInstance) Options(*NOCLEARMESSAGES *NOCLEARERRORS)
Select Fields(#SECTION) From_File(PSLMST)
Add_Entry To_List(#LIST)
Endselect
Endroutine
Evtroutine Handling(#PHBN_SET.Click)
If_Ref Com(#LIST.focusitem) Is_Not(*NULL)
Change Field(#STD_NUM) To('#LIST.FOCUSITEM.ENTRY')
Get_Entry Number(#STD_NUM)
Endif
Change Field(#SECT_CBX) To(#SECTION)
Endroutine
Evtroutine Handling(#PHBN_GET.Click)
Selectlist Named(#LIST)
If Cond('#SECTION *ne #SECT_CBX')
Continue
Endif
Set Com(#LIST.currentitem) Focus(true) Selected(true)
Endselect
Endroutine
End_Com

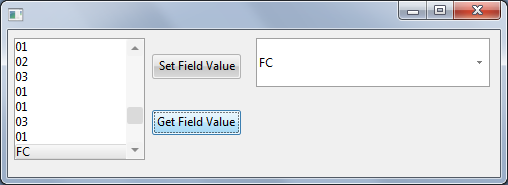

Appearance
