Step 1. Create Field iiiMONTH and Visual Picklist

The application will search the employee table (xEmployee) using SELECT_SQL, using a search on Date of Birth comparing the month value only. In this step you will create a month field and define a static picklist visualization for it. This will be visualized as a combo box which returns a numeric month number.

1.  Create a new field, iiiMONTH based on the following:

Field Name iiiMONTH Description Month Type Signed Length 2 Decimals 0 RDMLX Enabled No Open in the Editor Yes

2.  With the new field open in the editor, select the Visualization tab.

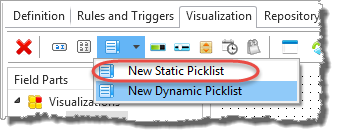

     Use the toolbar button to insert a Static Picklist

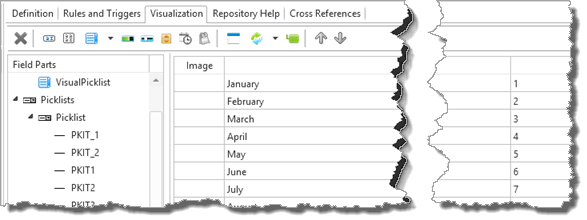

3.  In the Field Parts panel, select the picklist item and create entries for each month.

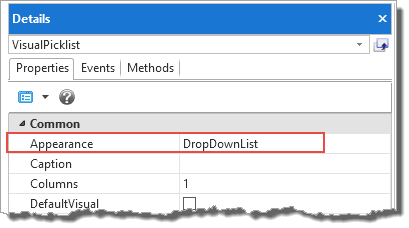

     The default appearance of a picklist is a DropDownList. Do not change this setting:

4.  Set the properties of the VisualizationPicklist element in the Details tab:

a.  Change its MarginLeft to 0, to hide the label.

b.  Change its DefaultVisual property to True.

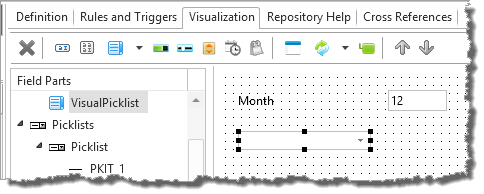

c.  Resize the DropDownList visualization as shown:

5.  Save the field definition and close it.
