2.2.3 Field Definition Tab

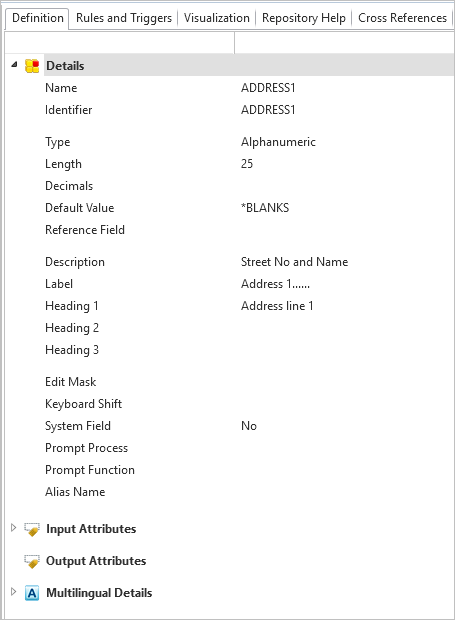

Double-click the field in the Repository to open the field's definition which is displayed in a number of tabs:

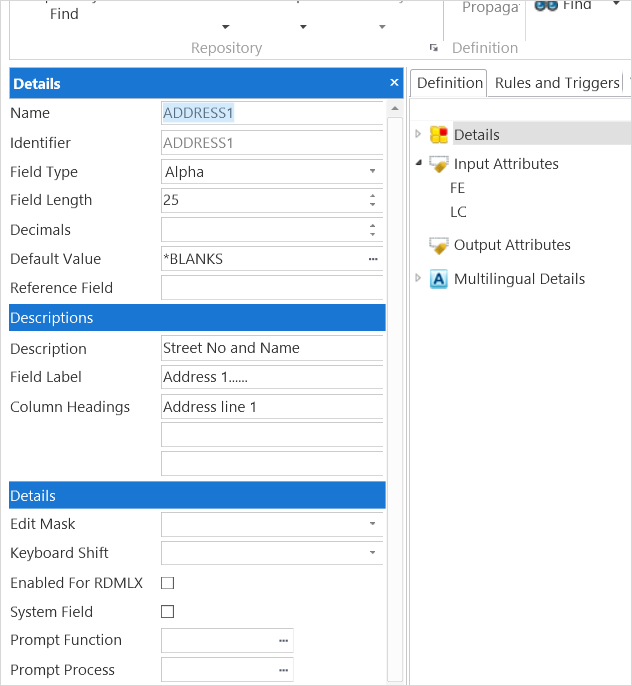

You can view the details in the various tabs. To change the details use the Details tab which you can open by double-clicking an item:

In addition to Details, the Definition tab contains:

Input and output attributes

To specify the field details, Input Attributes and Output Attributes for a field, double-click the input or output attribute list to display the relevant Details Tab.

Multilingual Details

Use the appropriate language tag to enter field descriptions for each language defined for the partition. Use the Propagate command to propagate the description, label and column headings for the focus language.



Also See

Field Definitions in the Technical Reference Guide

2.2 Fields
