9.23 COMPOSER_RUN

Note: Built-In Function Rules     Usage Options

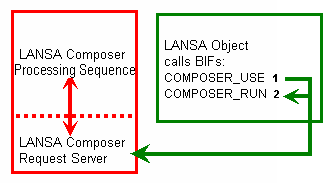

COMPOSER_RUN runs a LANSA Composer Processing Sequence, in the LANSA Composer system identified by the server symbolic name argument, through the LANSA Composer Request Server. It can pass up to five named parameter values to the processing sequence.

COMPOSER_RUN assumes that the target system (the system identified by the LANSA Composer server symbolic name argument) is a LANSA Composer system greater than Version 3, and contains the LANSA Composer Request Server software. This Built-In Function will fail if this is not the case.




You must execute the 9.24 COMPOSER_USE Built-In Function to define the server connection details and a symbolic name representing them before executing this Built-In Function.

Further important information about this Built-In Function, including the Processing Sequence Parameters, is provided at the end of these notes.

For further information, also refer to the COMPOSER_RUN activity and Appendix F - The LANSA Composer Request Server, in the LANSA Composer Guide.

Arguments

No

Type

Req/ Opt

Description

Min Len

Max Len

Min Dec

Max Dec

1

A

Req

LANSA Composer server symbolic name.

The symbolic name is used to identify the connection details for the required LANSA Composer server system.  The name must have previously been specified in the COMPOSER_USE Built-In Function in the current session.

1

10





2

A

Req

Processing Sequence identifier

Identifies the LANSA Composer processing sequence to run.  Specify either the external identifier (name) or the internal identifier.

1

32





3

A

Opt

Parameter name 1 (see below).

1

20





4

A

Opt

Parameter value 1 (see below).

1

200





5

A

Opt

Parameter name 2 (see below).

1

20





6

A

Opt

Parameter value 2 (see below).

1

200





7

A

Opt

Parameter name 3 (see below).

1

20





8

A

Opt

Parameter value 3 (see below).

1

200





9

A

Opt

Parameter name 4 (see below).

1

20





10

A

Opt

Parameter value 4 (see below).

1

200





11

A

Opt

Parameter name 5 (see below).

1

20





12

A

Opt

Parameter value 5 (see below).

1

200





13

A

Opt

Synchronous call?

Specifies whether the Built-In Function waits for the processing sequence to complete.

Defaults is 'Y', to wait.
If any other value is specified, the Built-In Function posts the processing sequence run request and ends immediately.

1

1





14

N

Opt

Synchronous timeout (seconds).

The number of seconds the Built-In Function waits for a synchronous processing sequence run to complete. If the timeout is exceeded, the Built-In Function ends with a result code of 'TM'.

Default is 30 seconds.

1

5

0

0

15

N

Opt

Request expires (seconds). IBM i servers only. Expiry does not apply to Winders servers.

The number of seconds the request remains effective after it is posted to the request server.

If more than the specified interval has elapsed before the request server begins to process the request, the request server will consider that the request has expired and will not process it.

Default is zero (0). This means that no expiry applies to the request.

1

5

0

0



Return Values

No

Type

Req/ Opt

Description

Min Len

Max Len

Min Dec

Max Dec

1

A

Opt

Result code.

OK, if the Built-In Function completes successfully.
TM, if the synchronous request timed out.
Any other result code signifies that an error occurred.

2

2







Examples

This example uses a previously defined connection to a LANSA Composer system, with the symbolic name COMPOSER (see COMPOSER_USE), to call the processing sequence 'EXAMPLE_AATEST1'.

use builtin(COMPOSER_RUN) with_args('COMPOSER' 'EXAMPLE_AATEST1')

This example uses the same connection as above to call processing sequence 'EXAMPLE_AATEST2'. A single parameter: 'DIRECTORY' is passed with the value of '/'. The result code is received in variable #RESULT.

use builtin(COMPOSER_RUN) with_args('COMPOSER' 'EXAMPLE_AATEST2' 'DIRECTORY' '/') to_get(#RESULT)

This example uses the same connection as above to call processing sequence 'EXAMPLE_AATEST1', passing no parameters. The timeout value has been doubled from 30 seconds to 60 seconds.

Use Builtin(COMPOSER_RUN) With_Args('COMPOSER' 'EXAMPLE_AATEST1' *Default *Default *Default *Default *Default *Default *Default *Default *Default *Default *Default 60) to_get(#RESULT)

Processing Sequence Parameters

The Built-In Function arguments can be used to pass up to five parameter values to the processing sequence run. A pair of Built-In Function arguments is used for each processing sequence parameter:

Further considerations for processing sequences executed through the LANSA Composer Request Server

This Built-In Function will run the processing sequence through the LANSA Composer request server.

When executed this way, the processing sequence runs in another process or job (the request server).  The Built-In Function and the request server process or job communicate cooperatively to execute the request and return the results.

This is generally transparent to your application. However, some special considerations apply to this mode of execution, including considerations related to:

For information about requests executed through the LANSA Composer request server, refer to Appendix F (The LANSA Composer Request Server) in the LANSA Composer Guide.
