3.3 Select the Visual LANSA System Type

The Visual LANSA System Type dialog helps to determine the type of Visual LANSA system to install. The type can be specified by selecting, in the left hand pane:

• the system type from the drop down list

or

• answering the questions in the bottom section.

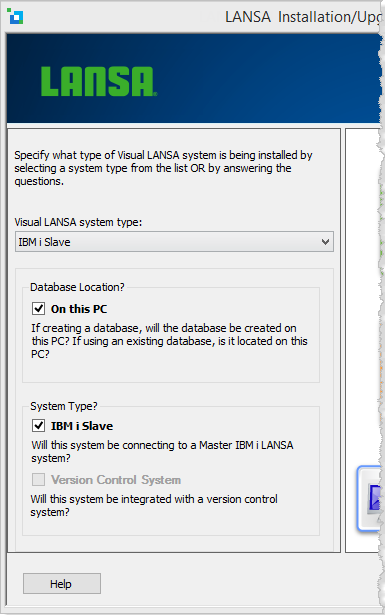

Visual LANSA System Type

From the dropdown list, select the required system type:

• 3.3.1 IBM i Slave
• 3.3.2 Independent Workstation to a VCS Master
• 3.3.3 Independent Visual LANSA System
• 3.3.4 Client to a Slave Database Server
• 3.3.5 Client to an Independent Database Server



The options at the bottom of the pane will reflect the System Type chosen.

Database Location?

Tick this option if you are creating a database on this workstation.

System Type

Tick IBM i Slave if the system will be connecting to a Master IBM i LANSA system.

Tick Version Control System if this system is connected to other Independent Visual LANSA Systems through a Version Control System Master Repository.

These 2 options are mutually exclusive.
