In VLF-ONE

You can retrieve a reference to a shipped VLF-ONE image in by using method #avFrameworkManager. avGetImageReference.

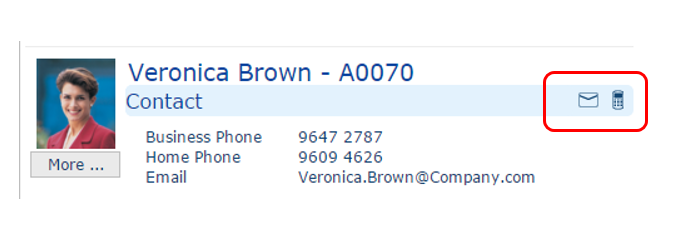

For example the shipped People instance list panel handler DF_T40PAO displays each employee like this:

It uses this code to get themed and sized references to the circled mail and phone images:

#AVFRAMEWORKMANAGER.avGetImageReference Filename(phone_outline.png)

                    Bitmap(#Image1.Image) Size(Small) Source(T)

#AVFRAMEWORKMANAGER.avGetImageReference Filename(mail_outline.png)

                   Bitmap(#Image2.Image) Size(Small) Source(T)

Explore folder <<partition directory>>\web\vl\VLFONE\Images\Blue\Large to see the set of shipped images.

Also see Get an Image from a File
