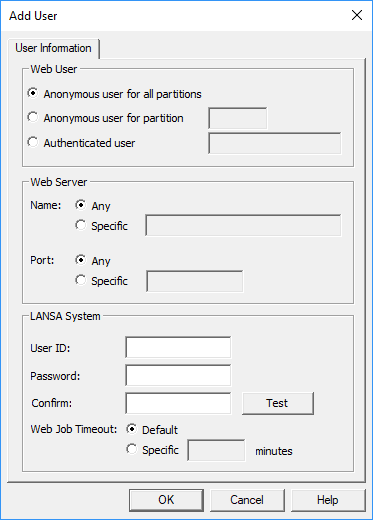

User Information

Web User

Mandatory.

This is the user profile registered to the Web Server. Choose Anonymous user for all partitions as a user profile to associate a host user profile for anonymous access to your LANSA applications. This entry will be seen as DFTUSR in the User Registration list

To define a host user profile for DFTPRT user profile for LANSA Web spool file display, specify DFTPRT as an Authenticated User. The access rights of the associated host user profile determine which spool files may be displayed.

You can assign partition level user access for the anonymous user by creating users using the Anonymous user for partition and specify the partition. This way you can assign certain rights to a particular partition. This entry will be seen as DFT_<partition> in the User Registration list

If you intend to provide support for an anonymous user, you must register the Anonymous user for all partitions. Map this Web user ID to a host user profile with minimal access rights.

Web User IDs are resolved in the following order. Ensure the System Name and Port Number correspond to the multi-homing system details.

Priority

Web User

Web Server Name

Web Server Port

1

 Authenticated User

Specified Name

Specified Port

2

 Authenticated User

Specified Name

 Any

3

 Authenticated User Any

Specified Port

4

 Authenticated User Any Any

5

 Anonymous user for partition

Specified Name

Specified Port

6

 Anonymous user for partition

Specified Name

 Any

7

 Anonymous user for partition Any

Specified Port

8

 Anonymous user for partition Any Any

9

 Anonymous user for all partitions

Specified Name

Specified Port

10

 Anonymous user for all partitions

Specified Name

 Any

11

 Anonymous user for all partitions Any

Specified Port

12

 Anonymous user for all partitions Any Any





Web Server - Name

Mandatory. If you are not using multi-homing support, choose Any as your Web Server Name.

If you are using multi-homing support, enter either the DNS Name (for example: syd.lansa.com) or the DNS's IP Address (for example: 124.54.56.21) in the System Name field.

Web Server - Port

Mandatory. If you are not using multi-homing support, choose Any as your Web Server Port.

If you are using multi-homing support, enter the port number associated with the Web Server Name and the Web User.

Timeout

Mandatory. The timeout period for each user. Choosing Default means that the system wide timeout applies.

LANSA System User ID, Password and Confirm

Mandatory. Enter the host profile to which the Web Server user profile is mapped. The password is case sensitive on some systems. You must confirm the password to be able to save.

Test

Establish a communication connection to the Data/Application Server from the system you are currently connected to and with the current user profile.
