Levelled List

You are here:

Levelled List

A levelled list is one where the ID and Caption for each level is represented by a different column. For example, the list may contain 3 columns: Department, Section, Name. The Tree View will automatically create "section" entries as children of "department" entries and "name" entries as children of "section" entries.

Two properties control how it does this:

key_fields	A comma delimited list of field names. These fields are used as keys for each level. As the list is processed, the key fields are compared, in order, with the key fields from the previous entry, if they change, a new tree entry is created at the key field level.
display_fields	A comma delimited list of field names. These fields contain the text to be displayed at the corresponding level.

For example, a working list like this:

DEPTMENT	SECTION	EMPNO	DISPNAME	DEPTDESC	SECDESC
ADM	01	A1001	BEN JONES	ADMINISTRATOR DEPT	INTERNAL ADMIN SRV
AUD	01	A1007	GEORGE SNELL	INTERNAL AUDITING	ADMINISTRATION
AUD	01	A1008	ALLAN SNEDDON	INTERNAL AUDITING	ADMINISTRATION
AUD	01	A1011	CHRISTOPHER PERRIN	INTERNAL AUDITING	ADMINISTRATION
AUD	02	A1009	DAMIAN SNASHALL	INTERNAL AUDITING	PURCHASING
AUD	03	A0907	ANNE MISS SIMPSON	INTERNAL AUDITING	ACCOUNTING
AUD	03	A1010	WILLIAM PERRY	INTERNAL AUDITING	ACCOUNTING
FLT	01	A1016	JACK TURNER	FLEET ADMINISTRATION	ADMINISTRATION
FLT	02	A1003	Robert SMITHE	FLEET ADMINISTRATION	PURCHASING
FLT	03	A0090	FRED JOHN ALAN BLOGGS	FLEET ADMINISTRATION	ACCOUNTING
GAC	02	A1018	PAUL ZACHARIA	GROUP ACCOUNTS	PURCHASING
INF	01	A1030	VALERIE TURNER	INFORMATION SERVICES	ADMINISTRATION
INF	02	A1017	GARY NEAVE	INFORMATION SERVICES	PURCHASING
LEG	01	A1019	CHARLES DICKENS	LEGAL DEPARTMENT	CONTRACTS, LOCAL
LEG	03	A1023	DAVID REID	LEGAL DEPARTMENT	ACCOUNTING
MIS	EI	A1031	JOHN BLAKE	MANAGEMNT INFORMATIO	EXECUTIVE INFORMATIO
MKT	01	A1024	JOHN TAYLOR	MARKETING DEPARTMENT	ADMINISTRATION
MKT	02	A1022	KELLY THOMPSON	MARKETING DEPARTMENT	PURCHASING
SD	ES	A1234	STEPHEN JACKSON	SALES & DISTRIBUTION	EXPORT SALES
TRVL	03	A1006	JACK SMITHERS	TRAVEL DEPARTMENT	ACCOUNTING

With key_fields and display_fields set to:

key_fields	DEPTMENT,SECTION,EMPNO
display_fields	DISPNAME,DEPTDESC,SECDESC

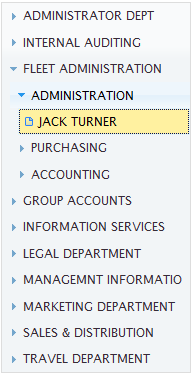

Would produce a tree like this:
