Step 1. Create a new WAM

WAM010 - Using WEB_MAPs

In this step, you will create a new Web Application Module that will eventually demonstrate the use of the WEB_MAP statement.

1.  In the LANSA Editor window, click the New button and choose Web Application Module.

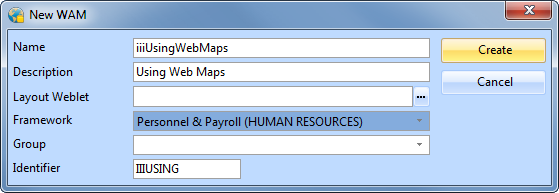

     The New WAM dialog will appear:



2.  In the New WAM dialog box:

a.  Enter a Name of iiiUsingWebMaps (where iii are your initials).

b.  Enter a Description of Using WEB_MAPs Demo.

c.  Leave the Layout Weblet field blank.

d.  Select the Personnel & Payroll Framework.

e.  Click the Create button to create the new WAM.

3.  The LANSA Editor will now display the WAM's RDMLX code. At this stage, it will not contain any WebRoutines.
