Step 3. Create iiiSecAdd - Add Section WAM

WAM050 – A Section Maintenance Application

This simple logic could be incorporated into WAM iiiSecMaint, however, you will instead create a new WAM to illustrate building a multi-WAM application.

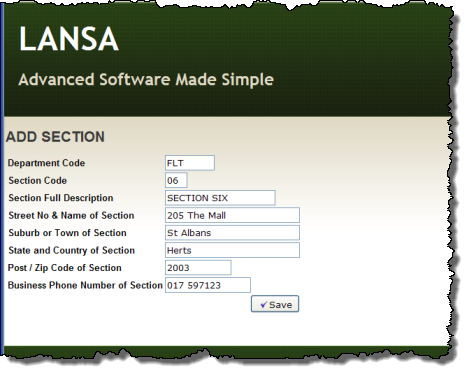

1.  Review the following web page:

• The AutoComplete weblet will support the department code input field

• All other fields will be entered

• A New button will be added to the Begin page for iiiSecMaint to call iiiSecAdd.

• The Add Section WAM will return to Section Maintenance Begin WebRoutine when a section is successfully added.

• Section Maintenance Begin WebRoutine will then list the sections for the department for which a section was added.

2.  Create a new WAM iiiSecAdd– Add Section using Layout Weblet iiilay01. Consider what common definitions and logic you could copy from iiiSecMaint. What WEB_MAPs will be required in the 'AddSect' WebRoutine?

3.  Create a basic outline for your WAM based on the following pseudo code

Define a work field DEPT_IN based on DEPTMENT

Define a Group_by of all fields for the Section table. All fields should be input capable

Map field STDRENTRY for *both, as a *hidden field

• Define a WebRoutine "AddSect"

Map field DEPT_IN for *both

Map group_by for Section fields for *both, all fields should be input capable. DEPTMENT should be a hidden field

End routine

     Your code should now look like this:

Function Options(*DIRECT)
Begin_Com Role(*EXTENDS #PRIM_WAM) Layoutweblet('iiilay01')
Define #DEPT_IN Reffld(#DEPTMENT)
Group_By Name(#SECT_DETL) Fields((#DEPTMENT *hidden) #SECTION #SECDESC #SECADDR1 #SECADDR2 #SECADDR3 #SECPCODE #SECPHBUS)
*
Web_Map For(*BOTH) Fields((#STDRENTRY *HIDDEN))
*
WebRoutine Name(AddSect) Desc('Add Section')
Web_Map For(*BOTH) Fields(#Dept_In #SECT_DETL)
* ----------------------------
* Add section logic goes here
* ----------------------------
Endroutine
End_Com
