Step 4. Complete the AddSect WebRoutine

WAM050 – A Section Maintenance Application

1.  Your AddSect WebRoutine will handle the initial call from the Begin web page in iiiSecMaint and the call from the Save button' on the AddSect web page itself.

     Create your logic for WebRoutine AddSect based on the following pseudo code:

CASE of STDRENTRY

* when called from Begin WebRoutine

When = N

Change DEPTMENT to DEPT_IN (value passed in from iiiSecMaint)

Change SECTION to *null (value is passed in from iiiSecMaint)

* when Save button clicked

When = A

Change DEPTMENT to DEPT_IN (the input value on the web page)

Insert to Section file

If Status is *OKAY

Output message

Change STDRENTRY to L

Transfer to WebRoutine iiiSecMaint.Begin

Endif

Endcase

     Your completed RDMLX code should look like the following:

Function Options(*DIRECT)
Begin_Com Role(*EXTENDS #PRIM_WAM) Layoutweblet('iiilay01')
Group_By Name(#SECT_DETL) Fields((#DEPTMENT *hidden) #SECTION #SECDESC #SECADDR1 #SECADDR2 #SECADDR3 #SECPCODE #SECPHBUS)
Define Field(#dept_in) Reffld(#deptment)
Web_Map For(*BOTH) Fields((#STDRENTRY *HIDDEN))
WebRoutine Name(ADDSECT) Desc('ADD SECTION')
Web_Map For(*BOTH) Fields(#dept_in #SECT_DETL)
Case Of_Field(#STDRENTRY)
* New button clicked in iiiSecMaint
When (= N)
#deptment := #dept_in
#SECTION := *NULL
* Add button clicked
When (= A)
#deptment := #dept_in
Insert Fields(#SECT_DETL) To_File(SECTAB) Val_Error(*NEXT)
#STDRENTRY := *NULL
If_Status Is(*OKAY)
Message Msgtxt('Section successfully added')
#stdrentry := L
Transfer Toroutine(#iiiSecMaint.BEGIN)
Endif
Endcase
Endroutine
End_Com

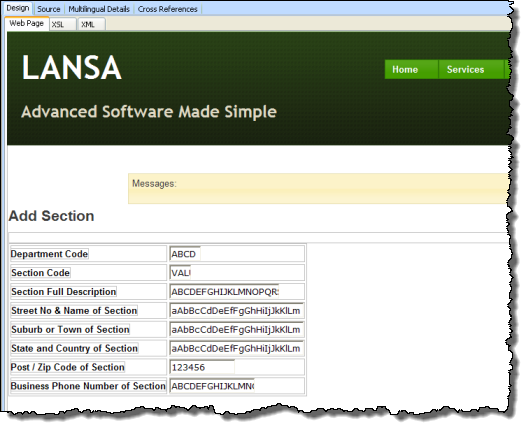

2.  Compile your WAM and open in the Design view. It should look like the following:

3.  If necessary change the Department Code to an input field. Drop an AutoComplete weblet onto the department field value. Set up the weblet properties based on:

Property Value sourceWamName iiiSecMaint sourcewrName AutoComplete listName DEPTS valueField DEPTMENT

     Note that the AutoComplete weblet is calling the response WebRoutine you created in WAM iiiSecMaint.

4.  The Section field should be an input field, change it if necessary.

5.  Add a row to the bottom of the table and add a push button with image to the right hand cell. Make the cell right align. Set up the push button properties as shown:

Property Value caption Save left_relative_image icons/normal/16/check_mark_16.png on_click_wrname AddSect submitExtraFields Field Name: STDRENTRY Literal Value: A

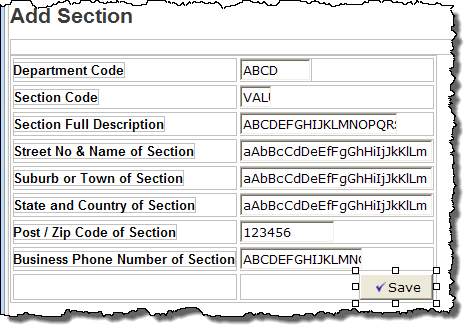

6.  Save these changes. Your completed AddSect page should look like the following:
