Step 5. Set up the 'New Section' button on the Begin page for ii SecMainti

WAM050 – A Section Maintenance Application

1.  Open the Begin WebRoutine in WAM iiiSecMaint in the Design view.

a.  Add a new row to the table containing the Department AutoComplete weblet.

b.  Set the left hand cell in the new row, to align left.

c.  Add a button with image to the bottom left hand cell.

     Hint: If you have a problem selecting inside the table, select the push button and move the cursor right, to position in the table cell. Enter two * characters. Now right click and use Table Items / Add Rows…

d.  Delete the place holder characters.

2.  Set up the New Section push button properties as shown:

Property Value Caption New Section left_relative_image icons/normal/16/star_16.png On_click_WamName iiiSecAdd On_click_wrname AddSect submitExtraFields   Field Name: STDRENTRY Field Value: N

a.  Adjust the width of the push button to display the caption as one line.

b.  Save your changes.

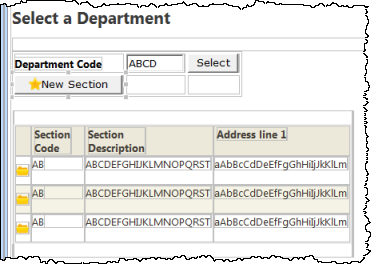

     Your completed Begin page should look like the following:

3.  Save these changes and run the Begin WebRoutine for WAM iiiSecMaint to test iiiSecAdd.

• Adding a new section should return to the Select a Department web page and display a list of sections for the department concerned.

• Trying to add a section with invalid or missing data should redisplay the Add Section web page, with error messages.
