New WEB API Server Module

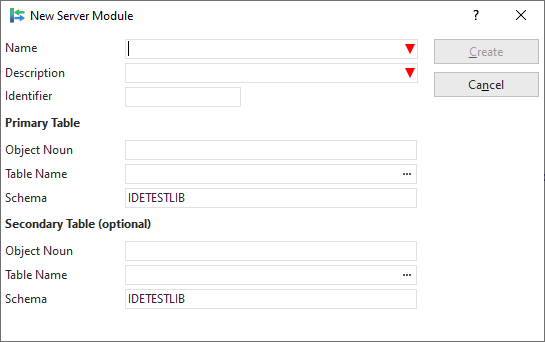

The Web API New Server Module dialog is displayed:
- Specify the Name, Description and other details of the server module that is to be created. Refer to Component Definitions in the Technical Reference Guide.
- The Object Noun is used to identify the Web API and defined the associated schema information
- Specify a primary, and optionally a secondary, table to be accessed to generate associated Web APIs. The primary and secondary tables must have a parent/child relationship.
- When the required details have been specified, click Create to generate the server module.
The server module will be opened in the editor.
To copy an existing server module, select the server module in the Repository Tab or the Favorites Tab and use the Copy option from the context menu.
Also See
Publish Web Services tutorial app at the LANSA Developer site.
Creating Applications Using Components in the Developer Guide.
Components in the Technical Reference Guide.
