Publish RESTful Web Services

LANSA developers can now develop RESTful web services using RDML. A Windows or a Linux web server is required.

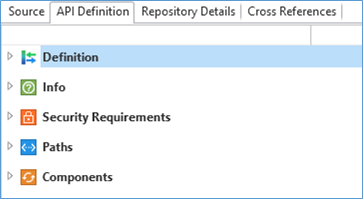

Server module API definition consists of:

Definition

Publish as Swagger V2

Info

Title, Description, Terms of Service

Security Requirements

HttpBasic, API Key, OAuth2, OpenIDConnect

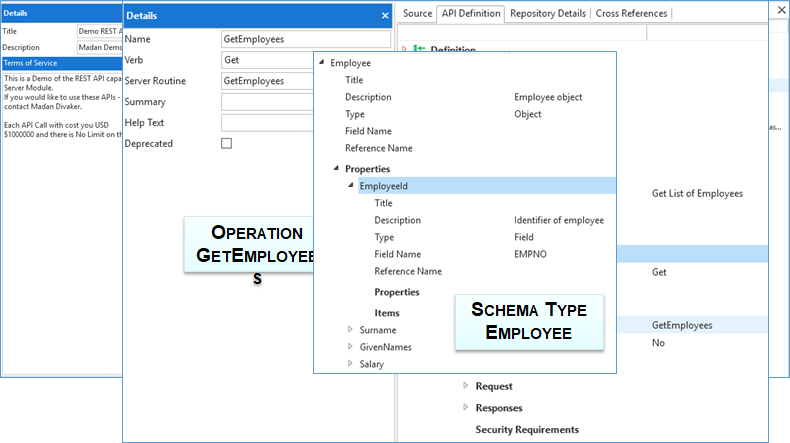

Paths

URLs that map to operations with parameters.

Each operation is mapped to HTTP VERB and to server routine.

Components

Schema Types. Each schema type can be mapped to Field, Integer, String, Array, Object, Boolean or Number.

Security Schemes

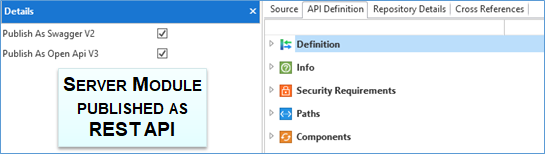

REST API definition can be set up within the server module. The API Configuration is automatically published and updated when the Server Module is compiled.

Swagger documentation can be generated for REST API.
