15.8 Tracing Just in Time Connections

If issues still exist with your Just in Time deployment after reviewing the 15.7 Troubleshooting Just in Time, the next step is to configure tracing to obtain more detailed information.

To configure tracing:


How to do it

1.  Enable Tracing on the Client Application

Add the following X_RUN commands to the X_LANSA.PRO or X_START start file:






1.  Enable tracing globally

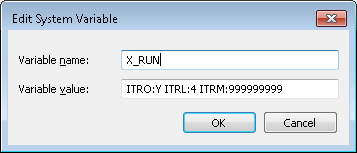

Add the following X_RUN values to the system environment variables

2. Enable Tracing on the Listener on the Application Server

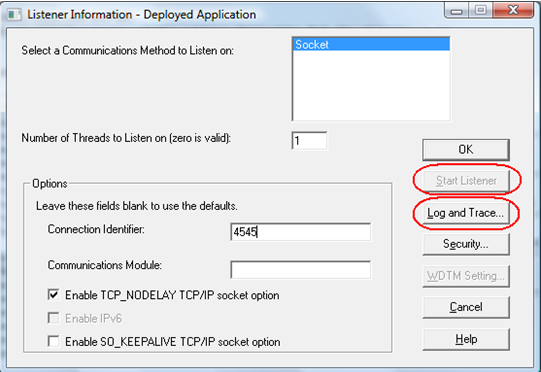

Open the Communications Administration dialog and select the Listener option from the Advanced Menu.

Click the Log and Trace button.

VLDTool14 Pic 1

In the Trace panel, select the Select Basic button and then click OK.

Stop and re-start the Listener.

Close the Communications Administrator.

3. Retry the connection

If the connection continues to fails, select No when prompted to continue.

The Listener trace files can be located in the Connect directory on the JIT Application Server.  Locate the log file x_lansa.trc.

The Client Application trace files should be located in the X_LANSA directory or %temp% directory as x_tracennn.txt files.

4. Contact LANSA Support

Contact LANSA support and forward your trace files and any detailed information relevant to your Just in Time setup.

5. Remove tracing

Remove all tracing to avoid overheads when running the application.
