1.2.11 Web Development Models
Web development and operation can be done with a single-tier set up or a multi-tier configuration as described in here.
To develop Web applications, you will need:
- A Data/Application Server, which can be a Windows or an IBM i server. The Data/Application Server is where your LANSA Repository resides and where the LANSA application runs.
- A Web Server, which can be a Windows or an IBM i server. The Web Server can be the same IBM i as your Data/Application Server, i.e. you can use single IBM i for both the Web Server and Data/Application Server.
- A Windows PC connected to the IBM i server to run the Web Administrator.
- A Windows PC with a supported browser to test your applications.
Your application development environment may be different to your intended deployment configuration.

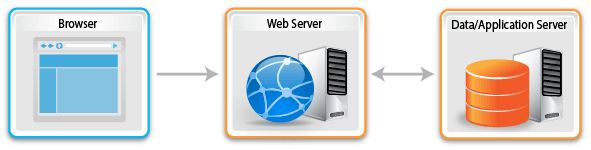

A typical multi-tier Windows-based development environment might appear as follows:

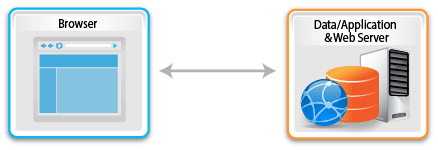

If you are running a single tier, Windows-based development environment where both the Web Server and the Data/Application Server are installed on a single PC your configuration will be similar to the picture following. This type of install is the standard, automatic install, provided by the LANSA Installation.

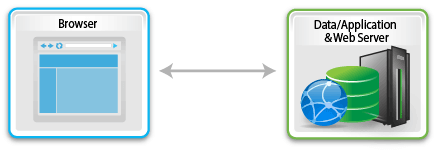

A typical Single-tier IBM i-based development environment might appear as follows:
Considerations for Web Development Environments
Following are some considerations for using the Web with your LANSA development environment:
- LANSA supports the concept of logical partitions to separate your different environments in your LANSA system. For example, you might have partitions for development (DEV), testing (TST), training (TRN), production (PRD), etc.
- You do not have to use Web in all of your LANSA partitions.
- A Web application developed in a partition executes independently of applications in other partitions. The application partition is identified when the user executes the Web application. Refer to Uniform Resource Locator (URL) Syntax in the Web Functions Guide.
- You must have both LANSA for i and Web development licenses on the Data/Application Server in order to develop Web applications on the IBM i.
You must have both Visual LANSA and Web development licenses on the Data/Application Server in order to develop Web application on Windows.
