Explanatory Source Code in VLF-ONE


Selected VLF-ONE Examples and generated RDMLX now include explanatory diagrams in the source code.

The diagrams are intended to make it easier to understand how things work together. They are displayed by the new VL-IDE annotations feature that allows images and URLs to be imbedded into source code.

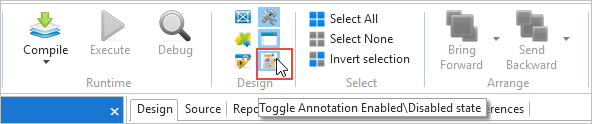

You can turn annotations on or off with this option in the VL-IDE:

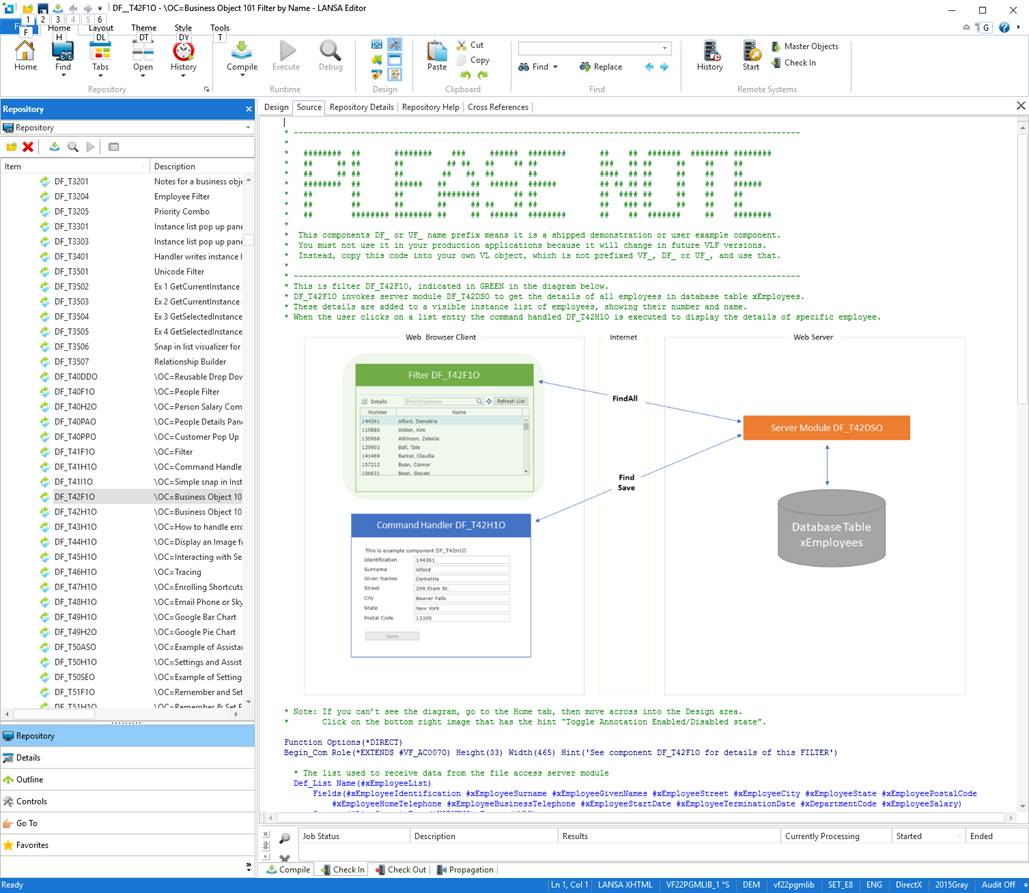

This is shipped example filter DF_T42F1O with annotations turned on:
