This example uses the shipped example Business Object 101 (DF_T42*0).

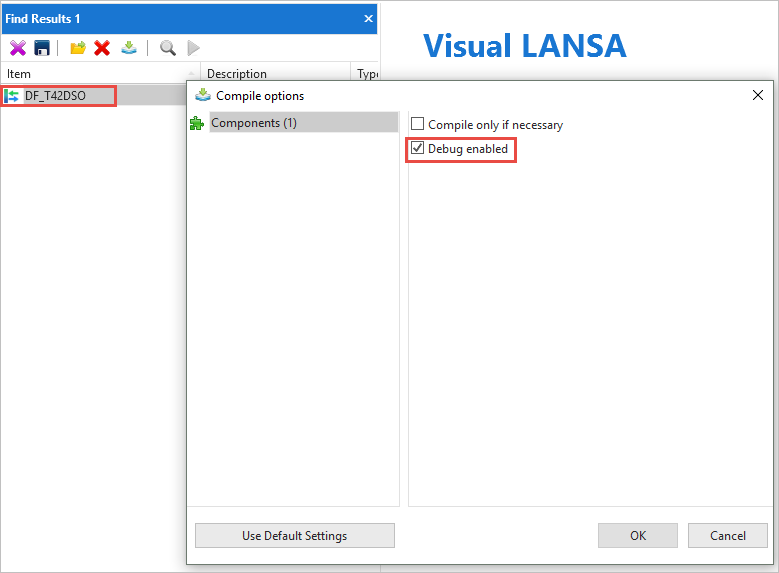

Compile a reusable part or server module with debug checked (here DF_T42DSO).

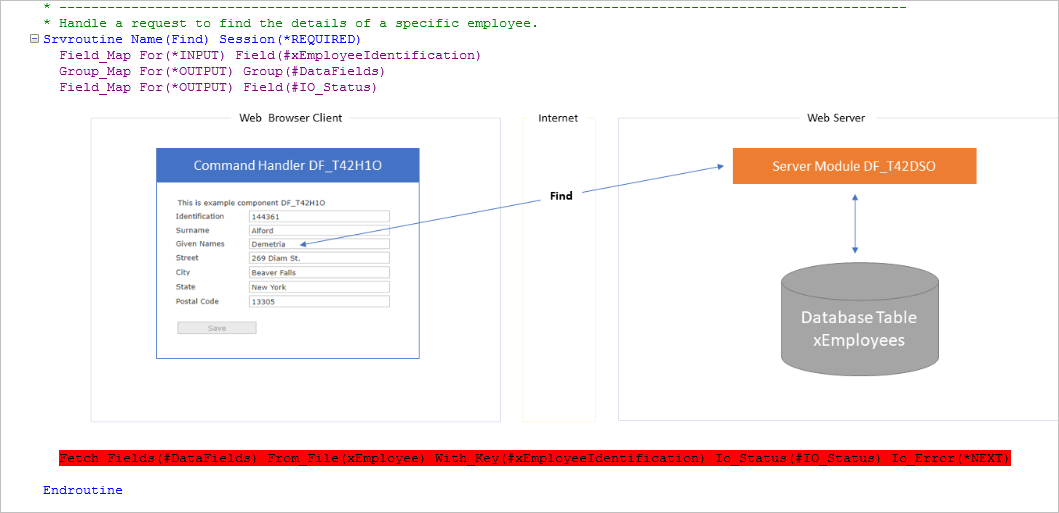

Mark the line in the source that you want to debug using F9.

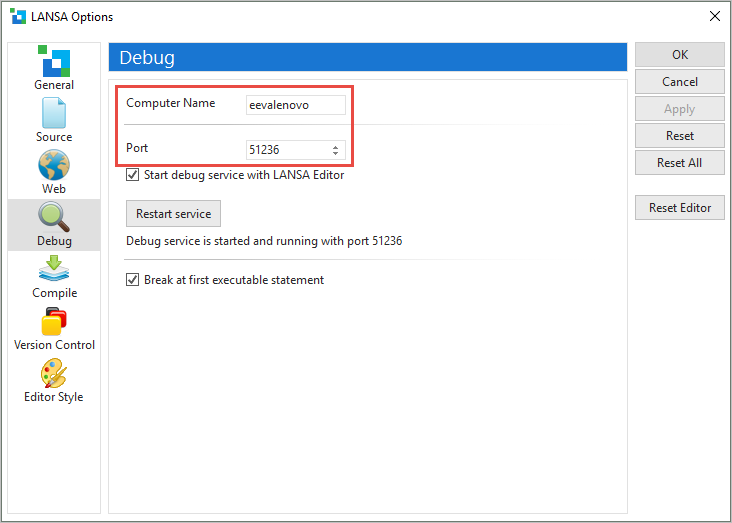

Get the computer name and the debug port: File --> Options --> Debug
Make these into a string of the form:

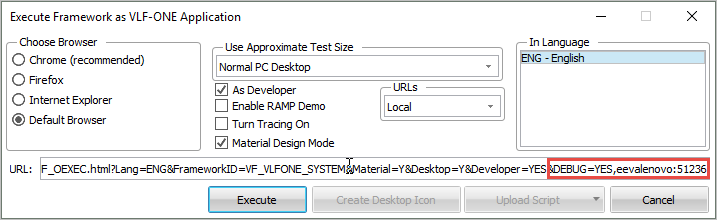

When executing the Framework, add this string on to the end of the URL generated by the launch dialog.

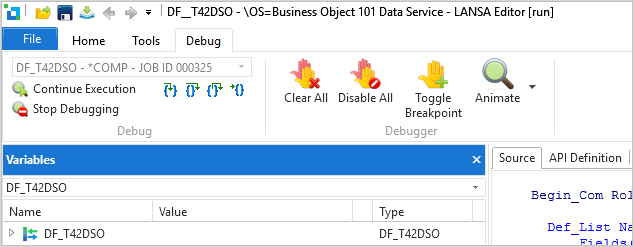

The Visual LANSA editor comes up when the first debuggable component is encountered.
Click Continue Execution.

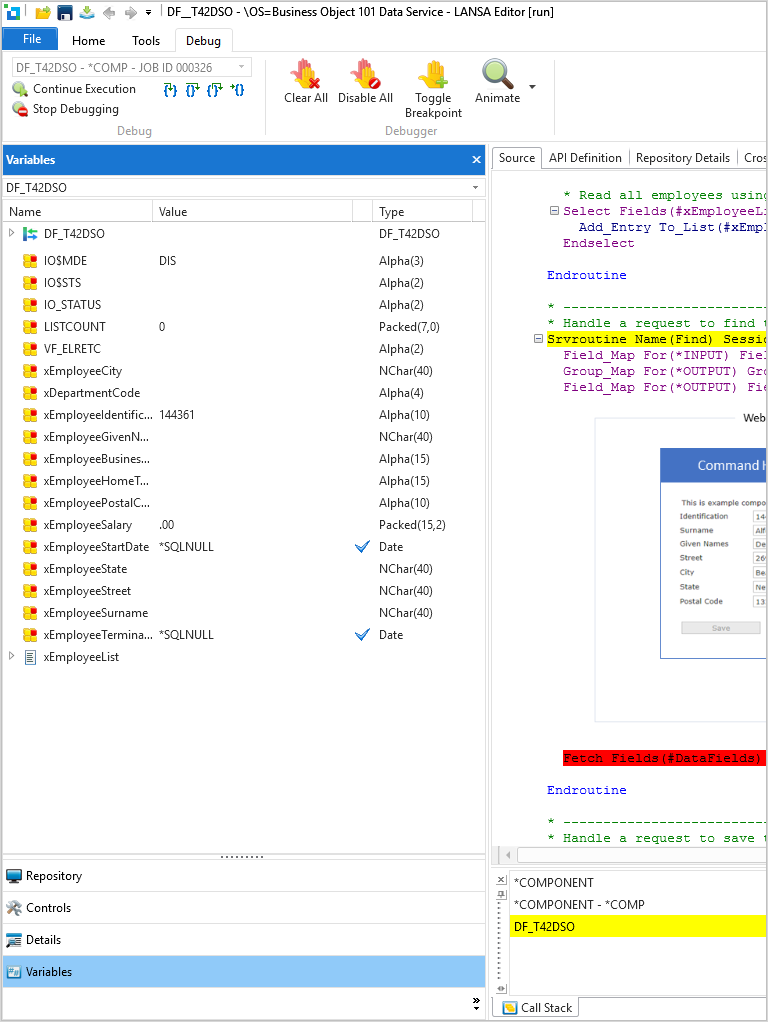

In your browser, continue to the business object to be debugged, in this example Business Object 101, and do a search. The Visual LANSA editor now shows your break point, and the values of all the fields and components.
