Create a Custom Framework Manager

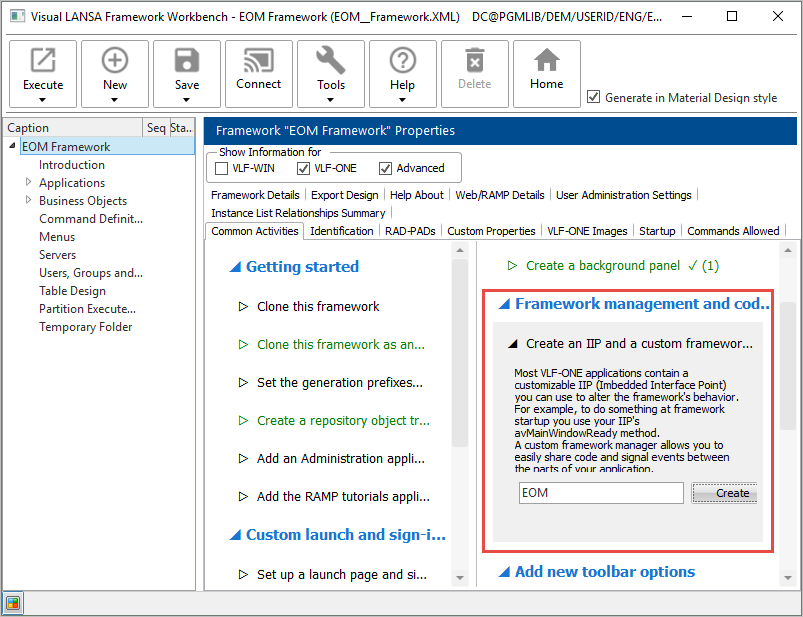

In this step you create a custom Framework manager to handle requests to change the background panel. To do this, display the Common Activities for the Framework and choose Create an IIP and a custom framework manager:



When the components have been created and snapped in, switch to the Visual LANSA editor and open your repository tracking list (see Create a Repository List to Track the Things You Create in This Tutorial).

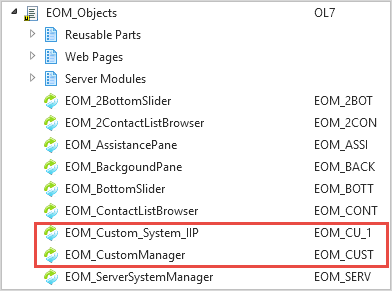

A custom IIP and a custom manager have been created for the Framework:



The custom IIP specifies the custom manager to be used.

Open the custom manager (XXX_CustomManager) and replace its source code with this code:

Begin_Com Role(*EXTENDS #VF_AC036O)



Define_Evt Name(ChangeBackgroundImage)

Define_Map For(*input) Class(#PRIM_ALPH) Name(#ImageName)



Define_Evt Name(ChangeBackgroundTextStyle)

Define_Map For(*input) Class(#PRIM_vs.Style) Name(#ToStyle) Pass(*BY_REFERENCE)



Mthroutine Name(RequestChangeBackgroundImage)

Define_Map For(*input) Class(#PRIM_ALPH) Name(#ImageName)

Signal Event(ChangeBackgroundImage) Imagename(#ImageName)

Endroutine



Mthroutine Name(RequestlChangeBackgroundTextStyle)

Define_Map For(*input) Class(#PRIM_vs.Style) Name(#ToStyle) Pass(*BY_REFERENCE)

Signal Event(ChangeBackgroundTextStyle) Tostyle(#ToStyle)

Endroutine



End_Com



The custom manager now defines ChangeBackGroundImage and ChangeBackgroundTextStyle events which it signals when requested.

Complile and close the custom manager.
