Change Instance List Style

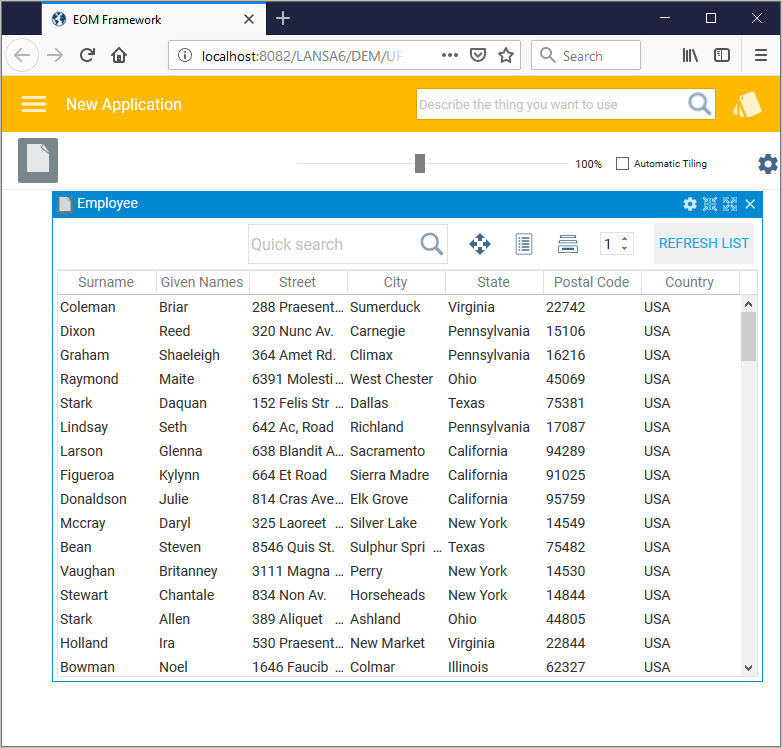

Execute the Framework and choose your business object to see the default instance list style (Simple Grid):


The filter that fills the instance list, XXX_XEMPLOYEE_FilterHiddenAll,  is hidden i.e. it has no user interface. See Hidden Filters In VLF-ONE.

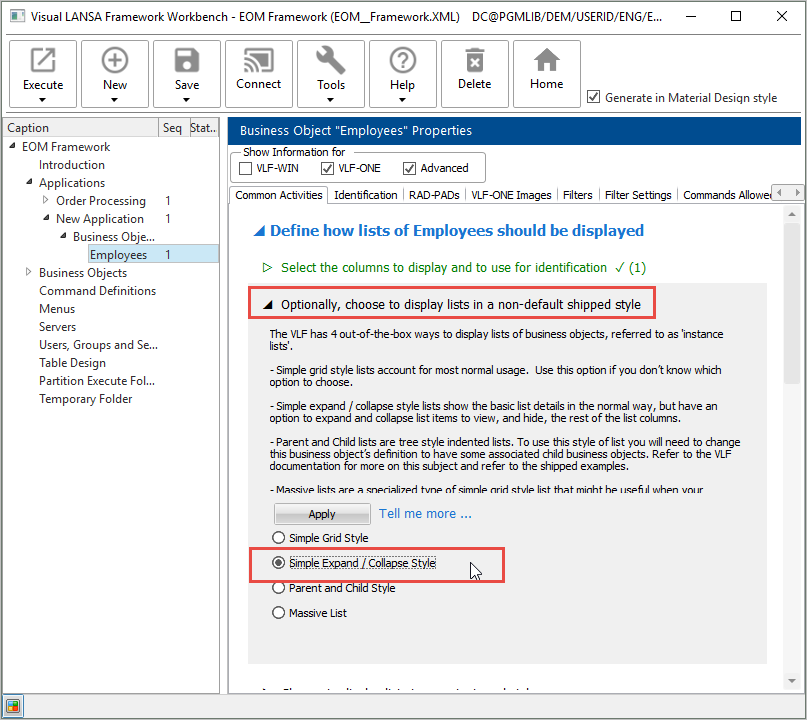

In the workbench, use the Optionally, choose to display lists in a non-default shipped style and choose Simple Expand / Collapse Style, then click Apply.

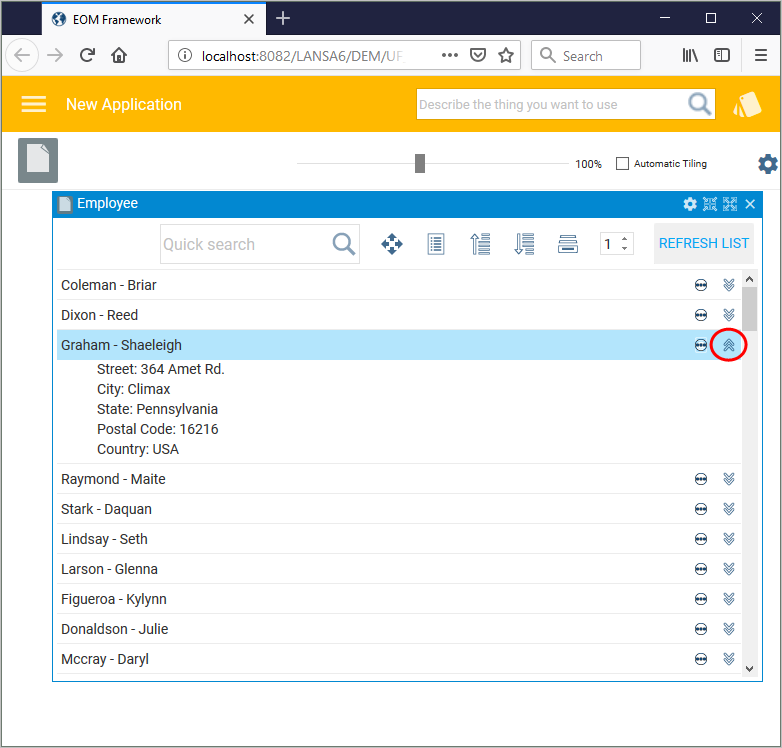

Execute the Framework to see the Expand / Collapse instance list style:

There are also options to display the instance list in Parent-Child Style or as a Massive List.

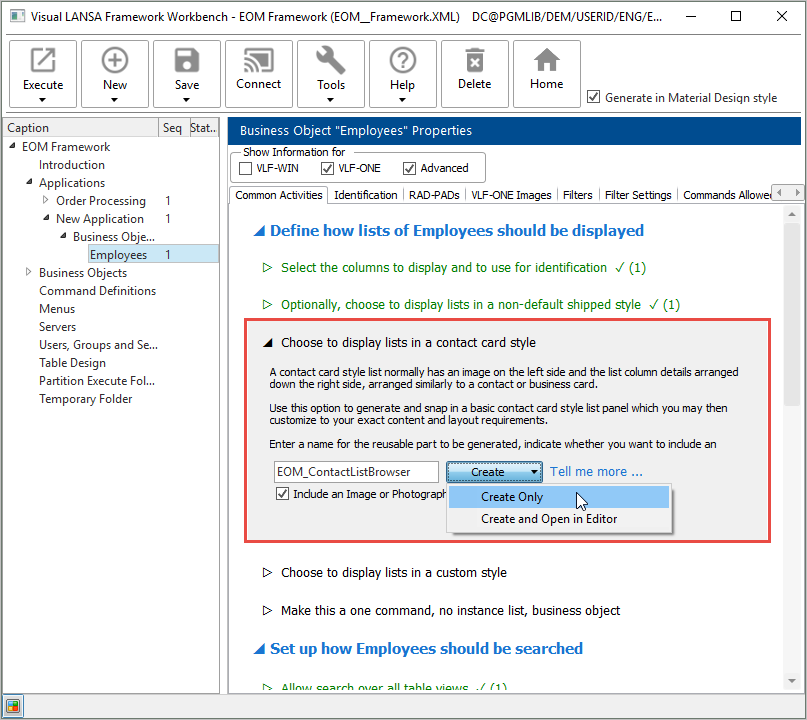

In the workbench, select Choose to display lists in a contact card style and click Create, then choose Create Only.

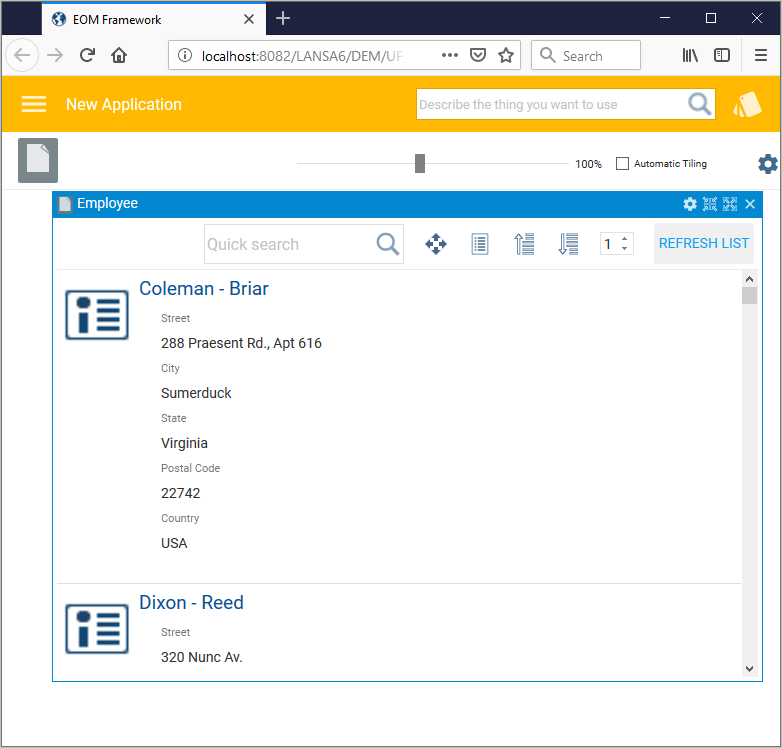

Execute the Framework to see the Contact Card instance list style:

Image placeholders are shown on the left because no images are present in the data.

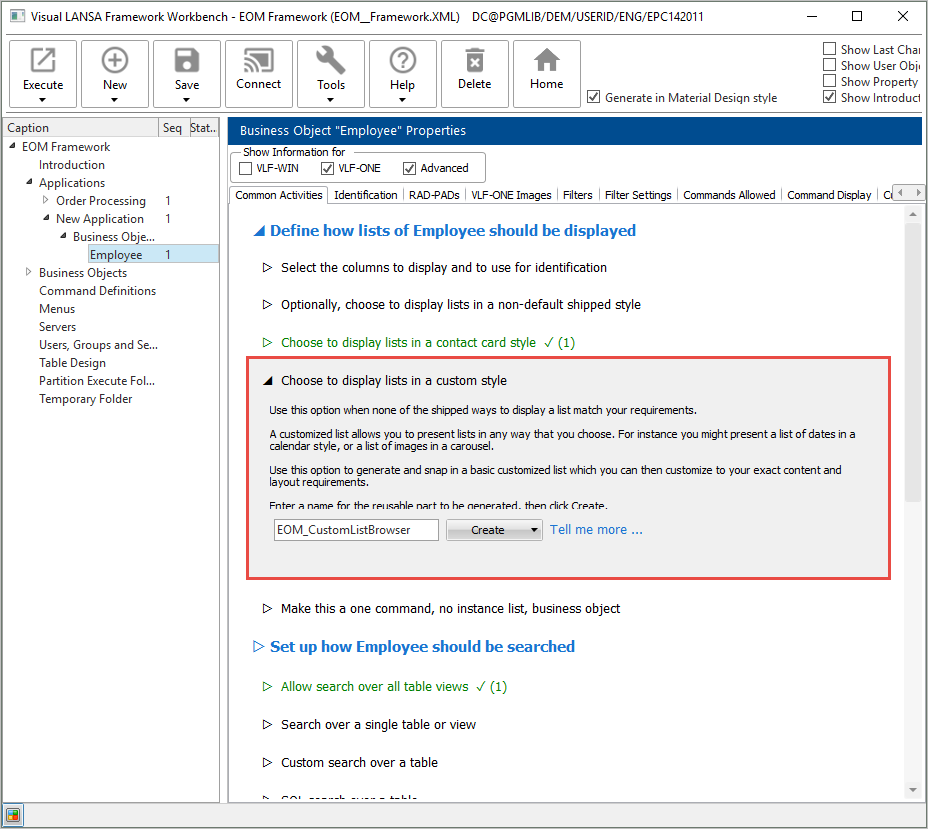

Note that there is also an option to create a basic instance list which can be customized to match your requirements.
