Using the Menu Item Designer

To open the menu item designer, follow these steps:

1.  Make sure the Menubar weblet on your page is selected and then click on the Details tab.

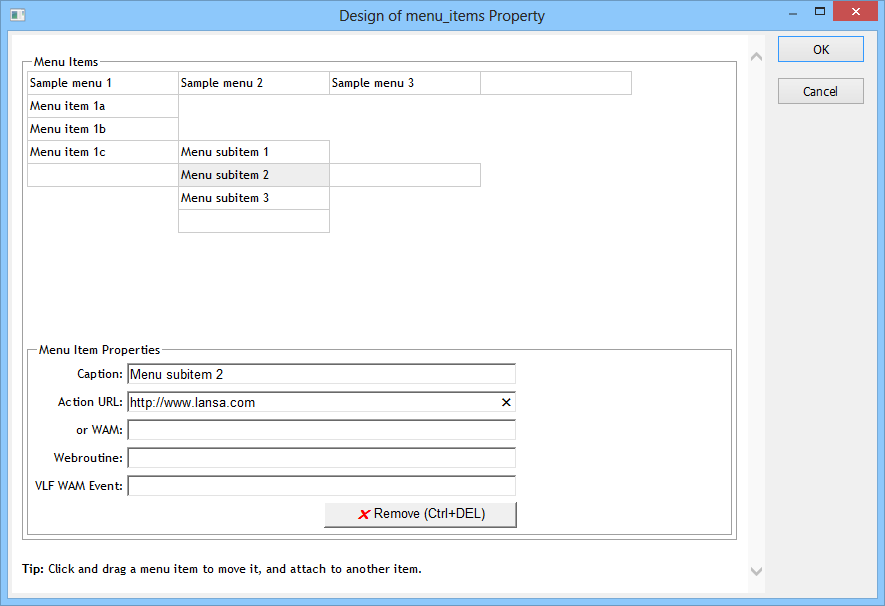

2.  Move the mouse pointer over the menu_items property in the Details tab. An ellipsis should appear next to the property value. Click the ellipsis button to open the menu items designer. A window like the one shown below appears.

The top-half of the window shows a representation of the current state of the menu. Note that this is always shown in horizontal orientation irrespective of the current value of the orientation property. In this part of the window, you can:

In the bottom-half of the window you can specify the details for the selected item as follows:


Specifies the text that appears on the face of the menu item. You can also enter the text directly on the face of a menu item by clicking on it in the top-half of the window and typing.

Action URL

Specifies a URL that the menu item will navigate to when clicked. You can specify a complete URL or one that is relative to the current page.

WAM and Webroutine

Specifies a Webroutine to invoke when the menu item is clicked. Note that if both a URL and a Webroutine have been specified, the URL will take priority and the Webroutine will be ignored.


Specifies a VLF WAM event to pass to the handler when this menu item is selected.
