Step 3. Create an External Resource

WAM100 - Using Cascading Style Sheets

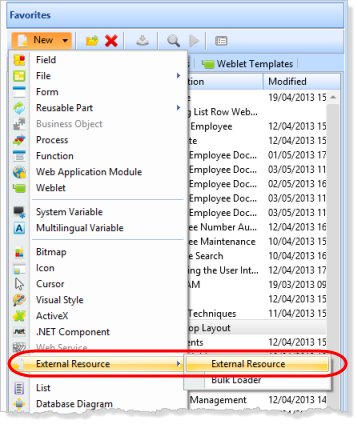

1.  On the Favorites tab, select External Resource / External Resource from the New button.

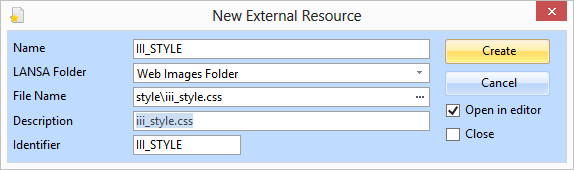

2.  Complete the details as shown in the table, but note the following steps:

a.  Begin by selecting the File Name using the Ellipsis button and the Open dialog to select the new style sheet you saved in the \style folder. The LANSA Folder and Description will also be automatically completed.

c.  Uncheck the options to Open in the Editor, check the Close checkbox.




LANSA Folder

Web Images Folder






d.  Click Create to save your External Resource definition.

     You have created an External Resource entry in the Repository, which can now be used to apply this style sheet to a layout.
