Step 8. Sending an Excel spreadsheet. Optional

INT003 - Using the LANSA User Agent

Microsoft Excel must be installed on your PC in order to complete this step.

In this step, you will create an Excel spreadsheet and modify the host configuration file SendCVSFile.lih to allow the User Agent to use an Excel file (.xls) as source, instead of a .csv file. The User Agent will read the spreadsheet and display the contents. It will then send the data to the Server in CSV format for processing by function iiiFN03. Function iiiFN03 will return a response to the LANSA User Agent. Function iiiFN03 must have a SVMODE(*IGNORE) keyword on the RECEIVE command, since the Excel spreadsheet will be defined with column headings which are not field names. If necessary, you should change function iiiFN03.

First, you must create the file containing the data to be sent using the User Agent. The file contains a list of employee numbers and the new salaries for those employees.

1.  Start Excel in Windows.

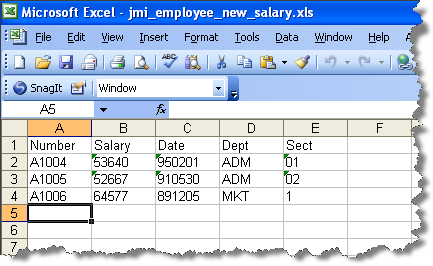

2.  Enter the following data in the top left 15 cells of sheet 1, as shown:





     Important Notes:

     Ensure that the employee identifiers in the EMPNO column (A1004, A1005 and A1006) exist in file PSLMST in the partition where the server side RDML function will execute.  (If the data does not exist in PSLMST file, substitute employee identifiers that do exist.) Enter the remaining data as shown.

3.  In the File menu, select the Save As option using these options:

Save in

locate the project directory where you defined the send CSV file solution. For example: c:\program files\lansa\integrator\Studio\workspace\iii Training\solutions\SendCSVFile\

File Name

iii_employee_new_salary.xls

Save as Type

Microsoft Excel workbook (*.xls)



4.  Close Excel.

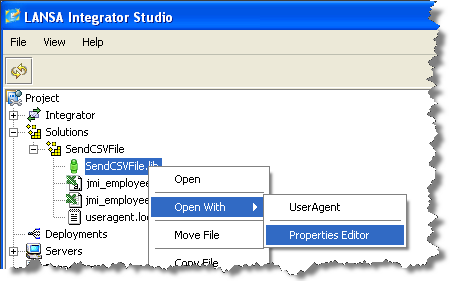

5.  With your iii Training project open in Integrator Studio, open the SendCSVFile.lih with the Properties Editor.

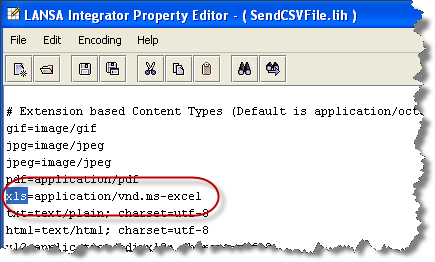

6.  Use Find to locate xls entries. You should find the highlighted entry already exists. This line defines the Windows application which the User Agent will use to display an .XLS file.

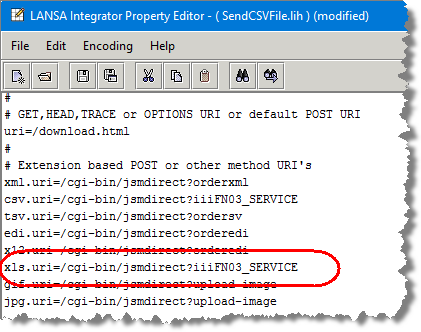

7.  Locate entries for uri and modify the entry for xls.uri=/cgi-bin . . .  as shown in the screen shot. This defines the service which the JSM will look up in [email protected] to find the program or function to call when handling an xls file.

     If you are using the JSM server on Windows the entry would change to:

xls.uri=/cgi-bin/jsmdirect.exe?iiiFN03_SERVICE

8.  Add a new section to the end of the configuration file, to tell the LANSA User Agent which of the sheets in the Excel spreadsheet to read and what to convert the spreadsheet to, prior to display.

#

# Excel processing

excel.convert=text/comma-separated-values;charset=utf-8

excel.sheet=Sheet1



9.  Save your changes and close the Properties Editor

10. As before, open the User Agent for your SendCSVFile solution, open the Excel file iii_employee_salary_amendments.xls and send it to the JSM server. The response should be the same as before.
