Step 1. Create a Copy of Form xDemoDragandDrop

VED010 - Format Source Code

In this step you will create a copy of the xDemoDragandDrop form and we'll then look at some editor features.

Forms are used to create graphical Windows applications. Forms have a design layout (a sample of the form design), as well as RDMLX code that is used to control the behavior of the form. You will use this sample form to learn the basics of controlling the display of LANSA code in the editor. The actual meaning of the code is not important at this stage.

Creating a copy of form xDemoDragandDrop will enable you to edit the form.

1.  On the Repository tab, expand the Forms node.

2.  Expand the X node to see a list of all forms starting with the letter X.

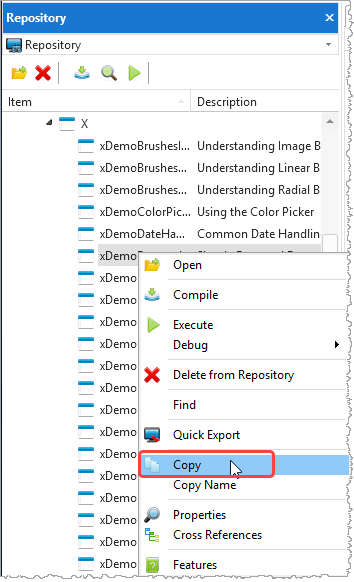

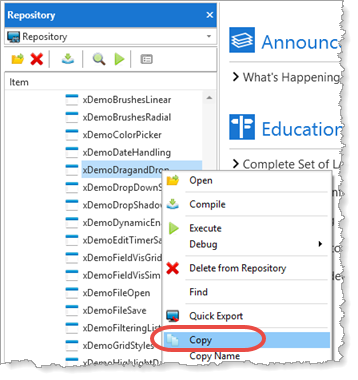

3.  Right-click form xDemoDragandDrop and choose the Copy option from the context menu.

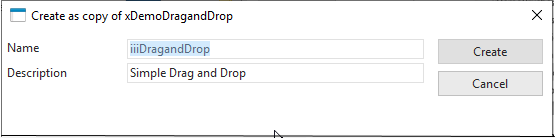

4.  The Create as copy of xDemoDragandDrop dialog will appear.

     Enter a Name of iiiDragandDrop (where iii=your initials) or DEMCOM01 if you are using an unlicensed trial version of Visual LANSA.

     Note that a Framework of Personnel & Payroll has also been selected. Components are organized into Frameworks. You can change a component's Framework setting at any time. Frameworks are shown on the Repository tab, under Organisers.

5.  Press the Create button.

6.  The form is opened for editing. The Design tab is selected by default and the design layout of form is shown.

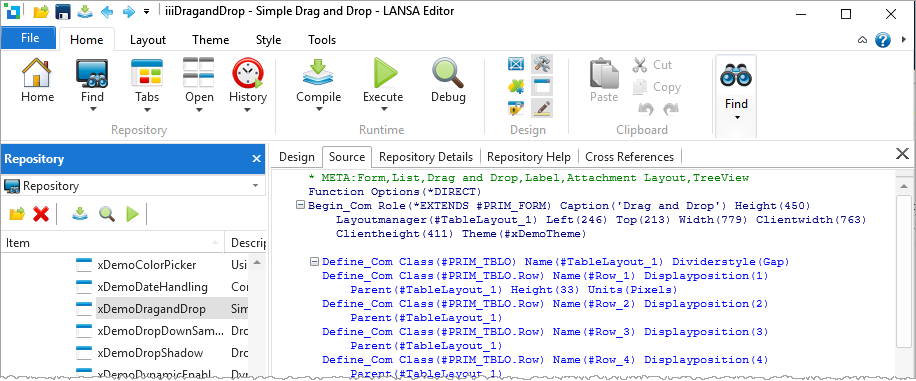

7.  Display the Source by clicking on the tab.

     The Source tab shows the source code of the form.

     Note:  Do not compile this form. We will simply use this code's source to demonstrate editor features. Leave form iiiDragandDrop open in the editor.
