Step 3 Create Access Route from Employee File

REP010 - Access Routes and PJFs

In this step you will create an access route from the Employee file to the Department file to describe the file relationship.

1. Open file iiiEmployees in the Editor.

2. Select the Access Routes tab. Ensure that the Details tab is visible.

3. Use the Add button on the Home ribbon, to select Add Access Route from the menu.

4. In the Details tab, enter the following characteristics:

Access route name	iiiTODEPT
Description	To Department File
Accessed file	iiiDepartments
Maximum records	One
Keep last
Default action	Create a dummy record and mark fields as not available (N/AVAIL)
Derivation:	After virtual fields

5. Click on Keys / New and use the ellipsis button and Find dialog to select the Key Field/Value to lookup a Department as,iiiDeptCode.

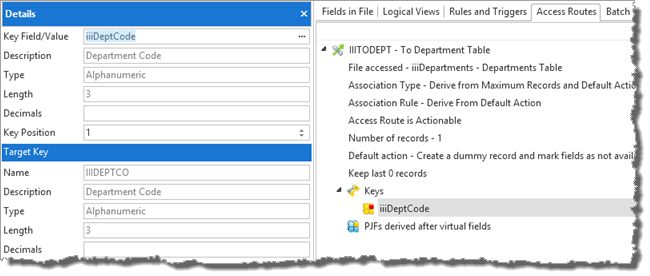

6. Your Access Route definition should look like the following:

7. Save the file.
