WAM065 - Controlling List Output
This step adds Autocomplete weblets for the To and From employee number fields. You may choose not to complete this step to save time.
At present, to use this enquiry you need to know suitable employee numbers. Adding an AutoComplete weblet for the from and to employee fields and a supporting response WebRoutine, will bring back and display a list of matching employee numbers as you type into the weblet.
1. Create the Empno_Prompt response WebRoutine based on the following code:
WebRoutine Name(Empno_Prompt) Response(*JSON)
Web_Map For(*input) Fields(#empno)
Web_Map For(*output) Fields((#emp_dd *json))
Def_List Name(#emp_dd) Fields(#empno #std_code) Counter(#std_count) Type(*Working)
Select Fields(#emp_dd) From_File(pslmst) Where(#std_count <= 3) With_Key(#empno) Options(*startkey *endwhere)
#std_code := #empno
The Empno_Response WebRoutine:
2. Compile your WAM.
3. Open the search WebRoutine in the Design view.
4. Drop an AutoComplete weblet onto to the EMPFROM field and the EMPTO field.

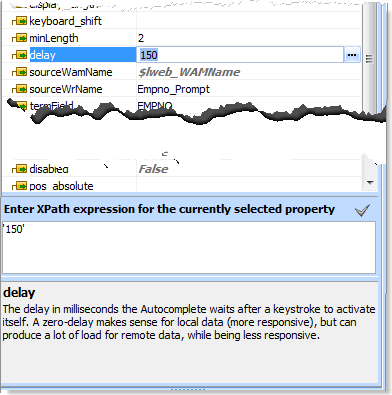

5. Set up both AutoComplete weblets as follows:
For more information on all weblets see the Web Application Modules Guide.
See also the help available for each property from the Details tab:
The minLength value is the characters to be typed before the WebRoutine is called
The delay value is the number of milliseconds the weblet waits to activate itself after the last keystroke.
The termField is the value passed to the WebRoutine defined in sourceWrName.
The listName is the response list to be displayed as a dropdown list.
The valueField is the list value to be displayed.
6. If necessary reduce the width of the AutoComplete input boxes to suit the field EMPNO (up to 5 characters).
7. Save your changes.

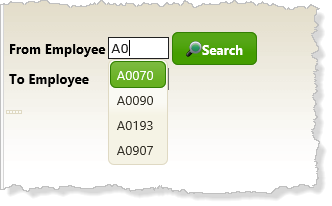

8. Execute your WAM in the browser and test the AutoComplete weblet. You should get the following results:
