Charts as Primitive Controls

LANSA chart controls are now available for web applications. These powerful native controls replace the Google chart widgets which were available in previous LANSA versions.

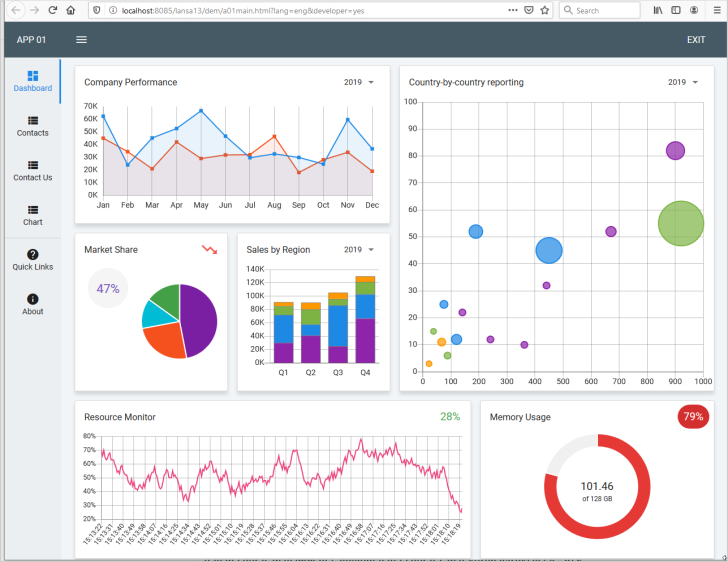

Use the Dashboard template to generate an application which showcases various usages for charts:

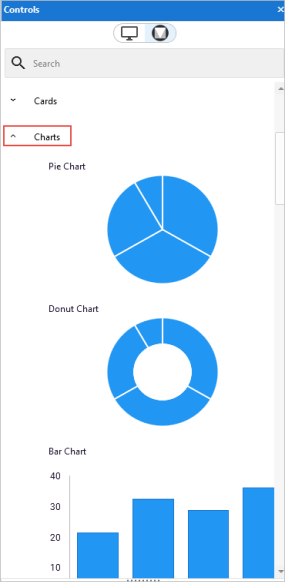

Use the Controls tab to add charts to your component:

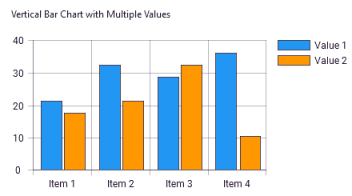

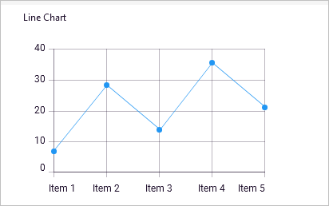

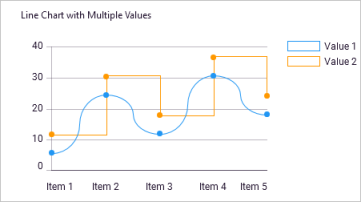

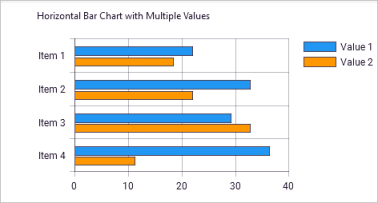

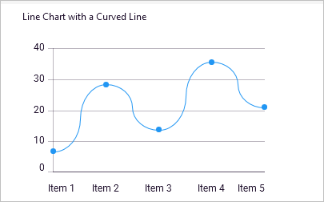

These are the available chart styles:

To add a chart to your web page or view, simply drag and drop it from the Controls tab.

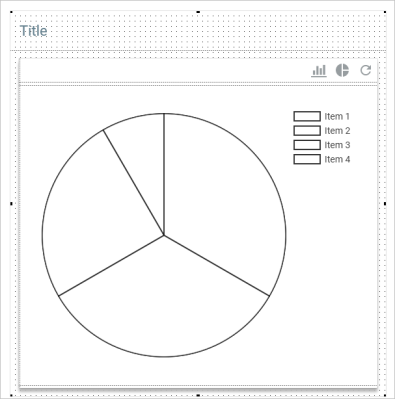

Here a pie chart has been dropped on a web page:



Here is the chart's definition in the Source tab:

* Define_Com Class(#PRIM_CHRT.BarChart) Name(#BarChart) Displayposition(3) Gridlines(Horizontal) Height(398) Left(33) Parent(#Panel) Tabposition(3) Tabstop(False) Top(73) Width(486) Visible(False)

* Define_Com Class(#PRIM_CHRT.BarChartCaption) Name(#BarChartCaption) Parent(#BarChart)

* Define_Com Class(#PRIM_CHRT.BarChartValue) Name(#BarChartValue) Displayposition(1) Parent(#BarChart)
