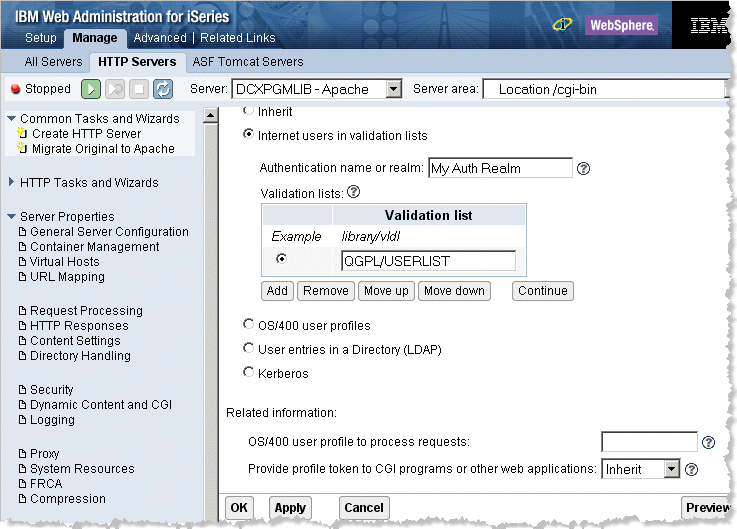

Step 3. Set Security

1.  From within your server instance of the IBM Web Administration for IBM i, expand the Server Properties menu and select Security to display the Security page.

2.  Use the Server area dropdown list set Location to: /cgi-bin

3.  Select the Authentication tab. Choose the Internet users in validation lists.

4.  Enter an authentication name of your choice.

5.  Press Add to specify the location of your validation list on the IBM i.

6.  Press Apply.

Sample IBM HTTP Server (powered by Apache)Configuration

Following is a sample IBM HTTP Server Instance configured for standard authentication running under V5R3 or later.

All requests to the Web Server using cgi-bin will require authentication.

# LANSA Web Apache HTTP Configuration File

Alias /images /lansa_dcxpgmlib/webserver/images
ScriptAliasMatch ^/cgi-bin/jsmdirect(.*) /QSYS.LIB/JSMLIB.LIB/JSMDIRECT.PGM$1
ScriptAliasMatch ^/cgi-bin/lansaweb(.*) /QSYS.LIB/DCXCOMLIB.LIB/lansaWEB.PGM$1
ScriptAliasMatch ^/cgi-bin/lansaxml(.*) /QSYS.LIB/DCXCOMLIB.LIB/lansaXML.PGM$1
Listen *:80
DocumentRoot /lansa_dcxpgmlib/WebServer/www/htdocs
# DirectoryIndex /index.html
ServerRoot /www/dcxpgmlib
Options -ExecCGI -FollowSymLinks -SymLinksIfOwnerMatch -Includes -IncludesNoExec -Indexes -MultiViews
DefaultFsCCSID 37
DefaultNetCCSID 819
LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"" combined
LogFormat "%{Cookie}n \"%r\" %t" cookie
LogFormat "%{User-agent}i" agent
LogFormat "%{Referer}i -> %U" referer
LogFormat "%h %l %u %t \"%r\" %>s %b" common
CustomLog logs/access_log combined
SetEnvIf "User-Agent" "Mozilla/2" nokeepalive
SetEnvIf "User-Agent" "JDK/1\.0" force-response-1.0
SetEnvIf "User-Agent" "Java/1\.0" force-response-1.0
SetEnvIf "User-Agent" "RealPlayer 4\.0" force-response-1.0
SetEnvIf "User-Agent" "MSIE 4\.0b2;" nokeepalive
SetEnvIf "User-Agent" "MSIE 4\.0b2;" force-response-1.0
SetEnvIf "User-Agent" ".*MSIE.*" nokeepalive ssl-unclean-shutdown downgrade-1.0 force-response-1.0
<Directory />
   Order Deny,Allow
   Deny From all
   Order Allow,Deny
   Allow From all
   Order Allow,Deny
   Allow From all
<Directory /lansaIMG>
   Order Allow,Deny
   Allow From all
<Directory /lansa_ii3pgmlib/WebServer/www/htdocs>
   Order Allow,Deny
   Allow From all
<Location /cgi-bin>
  AuthType Basic
  AuthName "My Auth Realm"
  Require valid-user

Go to Step 4. Register User in LANSA for Web.
