4.3 System Initialization

To access the System Initialization dialog, in the Visual LANSA Logon dialog, press the System Init... button before you press the OK button.

System initialization must be performed when a new Visual LANSA system is being launched or when updates are required to ANY of the System Definition items listed below.

The LANSA System Type is selected when the Visual LANSA software is installed. For a definition of the different types of systems you can install, refer to Planning Your Site in the Installing or Upgrading LANSA on Windows Guide.

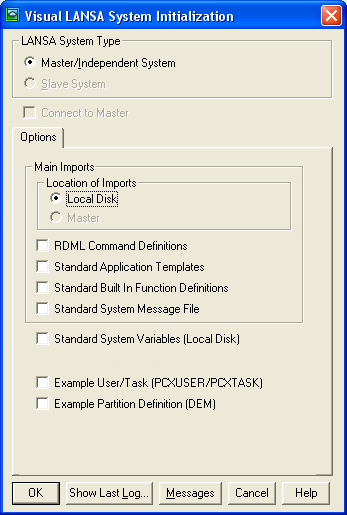

The options shown on the System Initialization dialog depend upon the 4.3.2 LANSA System Type.  A Master or Independent System has different options available to those on a Slave System. The System Initialization type will be selected for you automatically.


You will need to request a System Definition update when:

On a minimum system configuration, updating all of the above features, including a new partition will only take a few minutes.

You may select from the following options:

4.3.2 LANSA System Type

4.3.3 Connect to Master

4.3.4 Location of Imports

4.3.19 Use Windows credentials

4.3.5 RDML Command Definitions

4.3.6 Standard Application Templates

4.3.7 Standard Built-in Function Definitions

4.3.8 Standard System Message File

4.3.9 Standard System Variables

4.3.10 Example User/Task

4.3.11 Example Partition Definition

4.3.12 Enrolled PC Names

4.3.13 Enrolled PC Users

4.3.14 Current Task List

4.3.15 Partition Definitions


System Initialization and Partition Initialization replace Partition QuickStart, PLUGIN and REFRESH. The System Initialization dialog uses the same technology as REFRESH and PLUGIN and it is simpler to use.

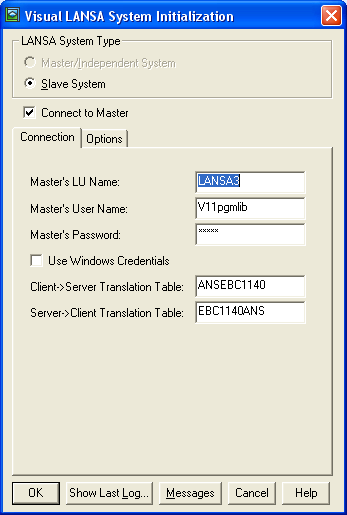

Connection Tab

A Connection tab is displayed when your PC is a Slave System. Refer to 4.3.2 LANSA System Type.





4.3.16 Master's LU Name

4.3.17 Master's User Name

4.3.18 Master's Password

4.3.19 Use Windows credentials

4.3.20 Client -> Server Translation Table

4.3.21 Server -> Client Translation Table


4.3.22 Show Last Log


Also See

4.4 Partition Initialization

3.3 Logon Parameters
