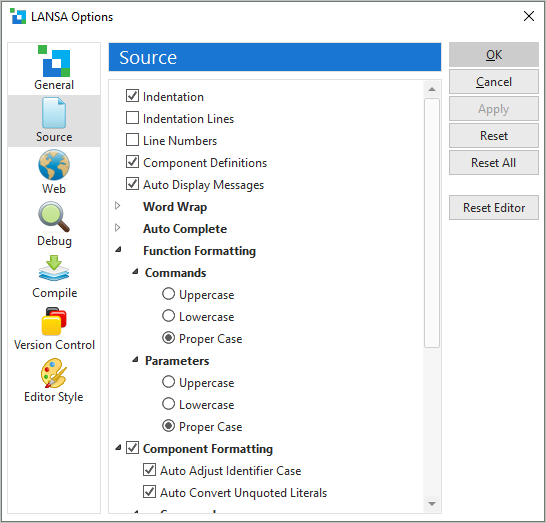

Source

Indentation

Indents commands in the Source tab.

Indentation Lines

Indentation lines assist you in navigating the source code in the Source tab

Line Numbers

Turns line numbering on and off in the Source tab.

Component Definitions

Displays DEFINE_COM statements in RDML source code.

Auto Display Messages

Displays all error and warning messages expanded in the Source tab.

Word Wrap

None - Turns word wrapping off.

Simple - Line will break at any space.

Smart - Line wrapping keeps parameters on the same line.

Auto Complete

Off - If you choose this option, you will get no prompting in your Source code window to assist you in completing your code. The Assistant tab is still available.

Prompter - This is the most powerful of the options available to help you create our LANSA code. If you choose this option, a small dialog is open in the Source tab. This dialog offers items (commands, parameters) that appear to be close to those you are using.

Inline - If you choose this option, the Auto Complete facilities offered are the opportunity to select the most likely option in your Source code.  This option is shown as part of your current line, rather than as a separate dialog.
Automatically completes text in the Source tab.
Refer to Auto Complete.



ShortCut - The keyboard shortcut for displaying Auto Complete can be either Ctrl + J or Ctrl + Space.

Audit Stamps

Name – displays the user name audit stamps in the Source tab.

Date – displays audit stamps dates in the Source tab.

Task Id – displays the audit stamps Task Id in the Source tab.
Refer to Task Maintenance in Visual LANSA Administration.

 Function Formatting

Commands

Format commands in:

  • Uppercase
  • Lowercase
  • Proper case  – initial uppercasing, for example Begin_Com

Keywords

Format keywords using:

  • Uppercase
  • Lowercase
  • Proper case



Component Formatting

Adjust Identifier Case

Formats any identifier (variable/method/property/event-name) according to its definition.

If you define a method:

MthRoutine Name(MyMethod)



And you use it like this:

#COM_OWNER.mymethod



The formatter will replace it with:

#COM_OWNER.MyMethod



Auto Convert Unquoted Literals

RDML has always treated identifiers without quotes as upper-case strings. Therefore:

#STD_TEXT := hello



Is equivalent to:

#STD_TEXT := "HELLO"



Most people do not know this, and they make mistakes like:

#COM_OWNER.Caption := STD_TEXT



If you select the Auto Convert option, the formatter re-formats these literals as their equivalent uppercase string, so the formatter will change:

#STD_TEXT := hello



To:

#STD_TEXT := "HELLO"



This will help you not to write:

#COM_OWNER.Caption := STD_TEXT



any longer, because you will see it changed to:

#COM_OWNER.Caption := "STD_TEXT"



As soon as you leave the line.

Commands

Format commands in:

  • Uppercase
  • Lowercase
  • Proper case – initial uppercasing, for example Begin_Com.

Parameters

Format parameters using:

  • Uppercase
  • Lowercase
  • Proper case

System Values

Format system values using:

  • Uppercase
  • Lowercase
  • Proper case
