WAM025 - Using the Layout Wizard


To create a WAM layout using the Layout Wizard.

The Web Application Layout Manager Wizard enables you to define your own layout that can then be used for each WAM you create. The wizard can create a layout based one of three shipped designs which can adopt one of two styles. Each layout can also adopt a theme that controls the color scheme the layout will have. Once you have defined your own layout, it could be modified to meet your company's requirements.

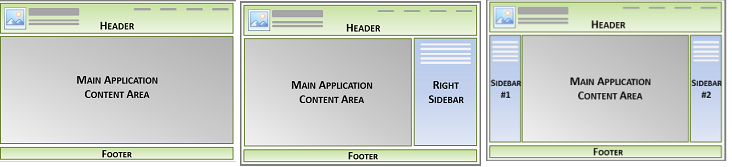

Your layout may have one main area (the Main application Content Area) or include one or two sidebars as shown below:

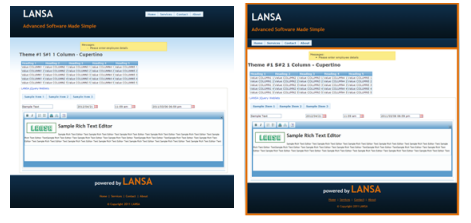

A layout may adopt one of two styles

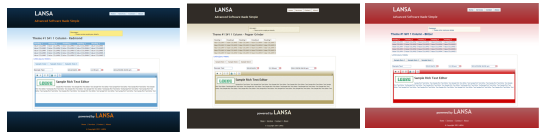

Themes allow you to select one of nine color schemes to apply to your layout. Three examples are shown below:

You can also choose between fixed or fluid layout width. The fluid layout is more flexible because its content area will include scroll bars if your content does not fit within the space available. For example some of your web pages may include lists with a large number of columns.

Once you have created a layout you could start to modify its appearance or content. For example, replace the fixed text such as 'LANSA Advanced Software Made Simple'. You will look at layouts in more detail in WAM110 - Create Your Own Layout Weblet.

To create your layout you will complete the following:

Step 1. Use the Web Application Layout Manager Wizard.

Step 2. Execute the generated Demo WAM

Step 3. Examine the new layout


Before you Begin

In order to complete this exercise, you should have completed the following:
