Step 2. Create Repository Field iiiDepartment

1.  Using the context menu, Copy field xDepartmentCode, to create a field named iiiDepartment. Do not copy Field Visualizations. Open the new field in the editor.

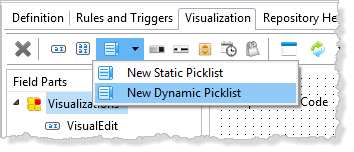

2.  Select the Visualizations tab, and add a Dynamic Picklist Visualization:

3.  In the Repository Find dialog, select your dynamic picklist component, iiiDepartmentPicklist and click OK. This will create a dynamic picklist, named VisualPicklist.

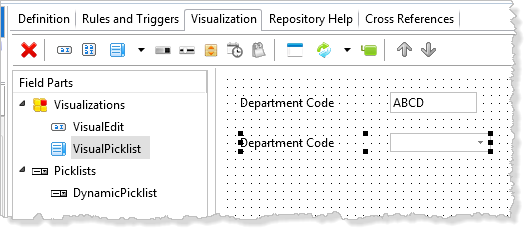

4.  Select the VisualPicklist component. On the Details tab:

a.  Make VisualPicklist the DefaultVisual.

b.  Change Height to 20

c.  Change Width to 310

5.  Save the field definition.
