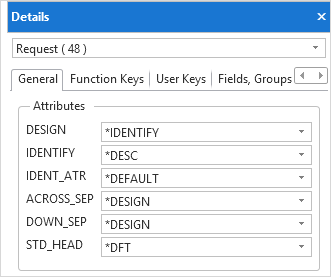

General Tab

The General tab shows the DISPLAY and REQUEST command parameters that govern the layout of the screen. Note that if specific attributes have been specified for a field, they override the general attributes. In this case, changing the general attributes has no effect.

Select from the dropdown lists, the options you require for the following:

DESIGN	The design/positioning method that should be used for fields that do not have specific position attributes associated with them.
IDENTIFY	The default identification method to be used for fields.
INDENT_ATR	Displays attributes that are to be associated with identification text (labels, description, column headings and so on).
ACROSS_SEP	The spacing between columns.
DOWN_SEP	The spacing between rows.
STD_HEAD	Specifies whether or not the standard LANSA design for the screen heading lines should be used.



For POP_UP commands, the General tab will contain fields to allow you to specify the location and size of the pop-up window.

Also See

REQUEST command parameters in the Technical Reference Guide.

DISPLAY command parameters in the Technical Reference Guide.

POP_UP command parameters in the Technical Reference Guide.
